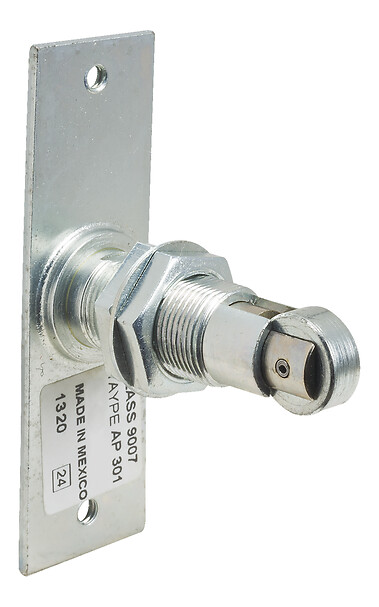

Snap switch 9007A, 600 VAC, 15 A, option version

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Snap limit switch
Device short name
9007AO/CO
Body type
Fixed
Mounting mode
Cabinet door type
Operator profile
Plunger head
Material
Metal
Body material
Cast zinc
Operator material
Cast zinc
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return lever arm metal cabinet door operator
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Electrical connection
1-2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Contact operation
Snap action
Contacts type and composition
NC-NO, switch function: SPDT-DB
Contact form
Form Z
Contacts material
Silver contacts
Positive opening
Without
Terminals description ISO n°1
(1-2)NC
(3-4)NO
NEMA degree of protection
NEMA 1 conforming to Nema type 250
IP degree of protection
IP20 conforming to IEC 60529
Unit type of package 1
PCE
Package 1 height
6.452 CENTIMETER
Number of units in package 1
1
Package 1 width
2.54 CENTIMETER
Package 1 length
16.387 CENTIMETER
Package 1 weight
68.039 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
