9007BA0

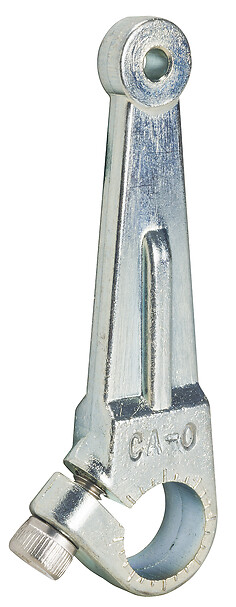

Limit switch lever 9007C, zinc, fixed length, no roller

END OF COMMERCIALISATION End of commercialization date : April 20th 2022 End of service date : April 20th 2022

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch lever
Device short name
9007C
ETIM classification
ETIM 9 - EC001483 - Drive head for position switches/hinge switches
Movement of operating head
Rotary
Type of operator
Cast zinc spring return roller lever without roller length: 1.38-1.38 in - offset: - -
Switch actuation
By 30° cam
Type of approach
Lateral approach
Positive opening
Without
Product weight
0.1 livre
Environmental characteristic
Standard environment
Ambient air temperature for operation
-29…85 °C
Ambient air temperature for storage
-29…85 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
MX (Mexico)
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.462 cm
Package 1 width
17.78 cm
Package 1 length
19.304 cm
Package 1 weight
45.359 g
