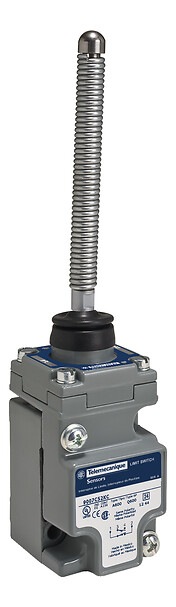

9007C52KC
Limit switch 9007C, 600 VAC, 10 A, option version
COMMERCIALISED
Expand all
Datasheet
Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch
Product specific application
Compact box
Device short name
9007C
Body type
Plug-in
Head type
Multi-directional head
Material
Metal
Fixing mode
By the body
Movement of operating head
Multi-directional
Type of operator
Steel spring return wobble stick (coil spring extension)
Switch actuation
By any moving part
Type of approach
Multi-directional approach, multi-directional approach
Electrical connection
Screw-clamp terminals (AWG 22...AWG 12), 1-2
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts type and composition
NC-NO
Contact operation
Snap action
Positive opening
Without
Body material
Zinc
Head material
Zinc
Function available
Not applicable
Switch function
SPDT-DB
Contact form
Form Z
Contacts material
Silver contacts
Terminals description ISO n°1
(1-2)NC
(3-4)NO
(3-4)NO
Local signalling
without
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Environmental characteristic
Standard environment
Protective treatment
Epoxy powder coat
Package 1 height
12.903 CENTIMETER
Package 1 width
5.08 CENTIMETER
Unit type of package 1
PCE
Package 1 length
32.774 CENTIMETER
Number of units in package 1
1
Package 1 weight
566.991 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
