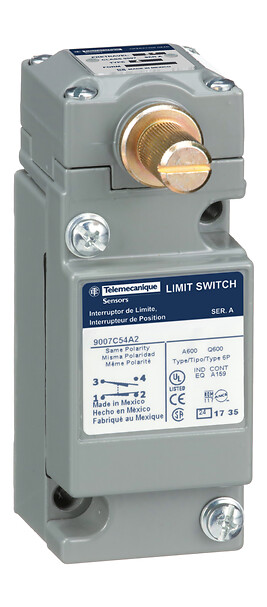

9007C54A2

9007

Heavy duty

Limit switch

9007C

Standard box

Plug-in

Rotary head

Metal

By the body

Rotary

Zinc spring return without operating lever (low differential)9007C lever

Lateral approach, 1 or 2 programmable direction

Screw-clamp terminals (AWG 22...AWG 12), 1-2

1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1

NC-NO

Without

CW and CCW
from left and right

Snap action

Zinc

Silver contacts

Zinc

Not applicable

SPDT-DB

Form Z

(1-2)NC
(3-4)NO

+/- 0.001 in linear travel of cam

without

60 gn for 9 ms conforming to IEC 60068-2-27

25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6

NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250

IP67 conforming to IEC 60529

Class 0 conforming to IEC 61140

Standard environment

Epoxy powder coat

4.064 CENTIMETER

6.858 CENTIMETER

10.414 CENTIMETER

PCE

1

0.567 KILOGRAM

S03

10

30 CENTIMETER

30 CENTIMETER

40 CENTIMETER

CAR

1

6.9 CENTIMETER

10.5 CENTIMETER

4.1 CENTIMETER

0.567 KILOGRAM

1
