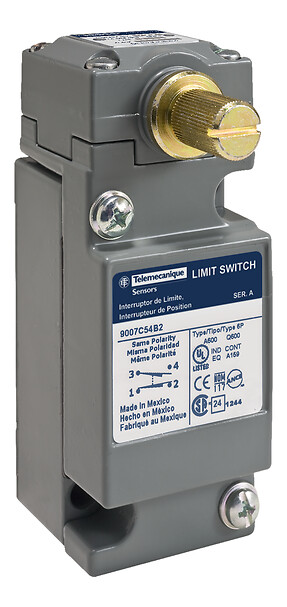

Limit switch, 9007, 600 V 10amp c +options

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch
Device short name
9007C
Product specific application
Standard box
Body type
Plug-in
Head type
Rotary head
Material
Metal
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Zinc spring return without operating lever (-)9007C lever
Type of approach
Lateral approach, 1 or 2 programmable direction
Electrical connection
Male connector, connector type: 7/8" - 16 UN - 2 A mini connector, 5 pins
Contacts type and composition
NC-NO
Positive opening
Without
Switch actuation
CW and CCW
from left and right
Contact operation
Snap action
Body material
Zinc
Contacts material
Silver contacts
Head material
Zinc
Function available
Not applicable
Switch function
SPDT-DB
Contact form
Form Z
Terminals description ISO n°1
(1-2)NC
(3-4)NO
Repeat accuracy
+/- 0.002 in linear travel of cam
Local signalling
without
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Environmental characteristic
Standard environment
Protective treatment
Epoxy powder coat
Package 1 height
25.806 CENTIMETER
Package 1 width
10.16 CENTIMETER
Package 1 length
65.548 CENTIMETER
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
566.991 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
