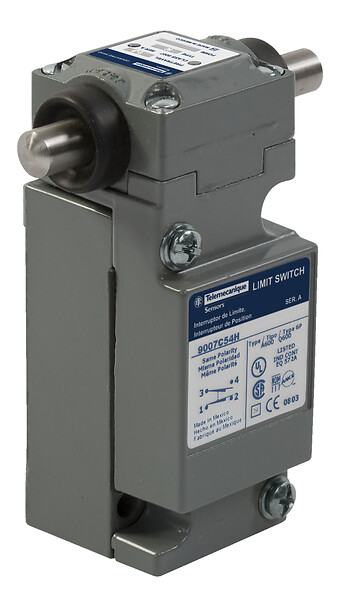

9007C54H

9007

Heavy duty

Limit switch

Standard box

9007C

Plug-in

Plunger head

Metal

By the body

Linear

Stainless steel stay put side plunger (-)

On end

Lateral approach, 1 direction

Screw-clamp terminals (AWG 22...AWG 12), 1-2

1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1

NC-NO

Snap action

Without

Zinc

Zinc

Not applicable

SPDT-DB

Form Z

Silver contacts

(1-2)NC
(3-4)NO

+/- 0.001 in linear travel of cam

without

60 gn for 9 ms conforming to IEC 60068-2-27

25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6

NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250

IP67 conforming to IEC 60529

Class 0 conforming to IEC 61140

Standard environment

Epoxy powder coat

6.452 CENTIMETER

2.54 CENTIMETER

PCE

16.387 CENTIMETER

1

566.991 GRAM

1
