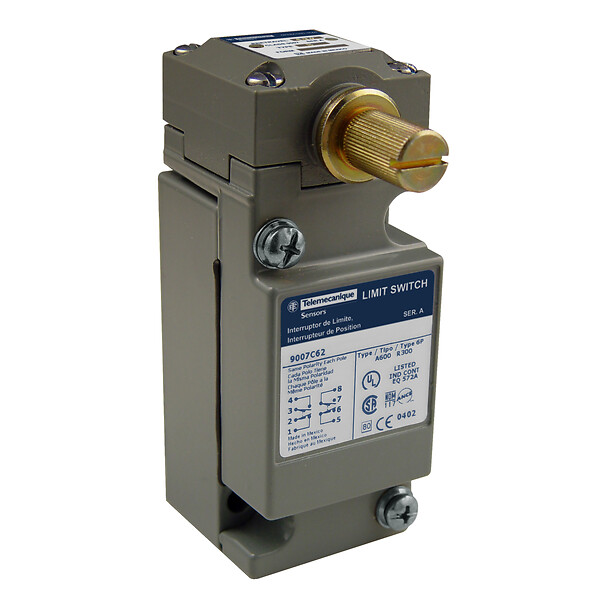

9007C62B2P6

Limit switch, 9007, 600 V 10amp c +options

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Characteristics
Documents & Downloads
Related products & accessories

Expand all

Datasheet

Range of product

9007

Series name

Heavy duty

Product or component type

Limit switch

Device short name

9007C

Product specific application

Standard box

Body type

Plug-in

Head type

Rotary head

Material

Metal

Fixing mode

By the body

Movement of operating head

Rotary

Type of operator

Zinc spring return without operating lever (-)9007C lever

Type of approach

Lateral approach, 1 or 2 programmable direction

Electrical connection

Screw-clamp terminals (AWG 22...AWG 12), 1-2

Cable entry

1 entry for 1/2" - 14 NPT conforming to BS 4568

Contacts type and composition

2(NC-NO)

Positive opening

Without

Switch actuation

CW and CCW
from left and right

Contact operation

Snap action

Body material

Zinc

Contacts material

Silver contacts

Head material

Zinc

Function available

Not applicable

Switch function

DPDT-DB

Contact form

Form ZZ

Terminals description ISO n°1

(1-2)NC
(3-4)NO
(5-6)NC
(7-8)NO

Repeat accuracy

+/- 0.002 in linear travel of cam

Local signalling

1 LED indicator light (light OFF when switch is actuated) at 24...120 V AC/DC service life: 100000 h

Shock resistance

60 gn for 9 ms conforming to IEC 60068-2-27

Vibration resistance

25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6

NEMA degree of protection

NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250

IP degree of protection

IP67 conforming to IEC 60529

Electrical shock protection class

Class 0 conforming to IEC 61140

Environmental characteristic

Standard environment

Protective treatment

Epoxy powder coat

Package 1 height

25.806 CENTIMETER

Package 1 width

10.16 CENTIMETER

Package 1 length

65.548 CENTIMETER

Unit type of package 1

PCE

Number of units in package 1

Package 1 weight

566.99 GRAM

Indivisible sale quantity

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
