9007CA11M

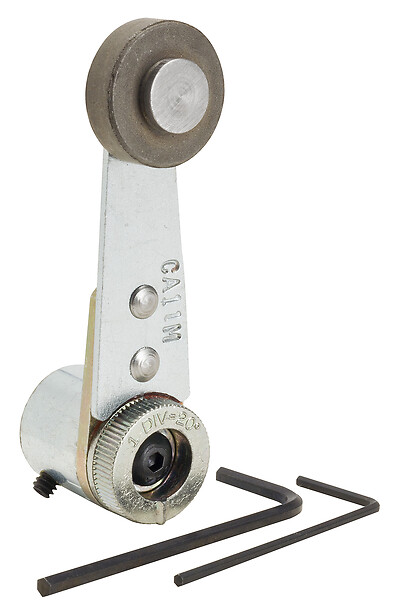

Limit switch lever, 9007, 9007C zinc, fixed length, outside steel roller
COMMERCIALISED
Expand all
Datasheet
Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch lever
Device short name
9007C
Type of roller
1 steel outside roller (convertible) diameter: 0.75 in - width: 0.25 in
Type of operator
Cast zinc spring return 360° adjustable roller lever length: 2-2 in - offset: - to pass over switch cover
Type of approach
Lateral approach
Movement of operating head
Rotary
Switch actuation
By 30° cam
Positive opening
Without
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.462 CENTIMETER
Package 1 width
17.78 CENTIMETER
Package 1 length
19.304 CENTIMETER
Package 1 weight
45.359 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
