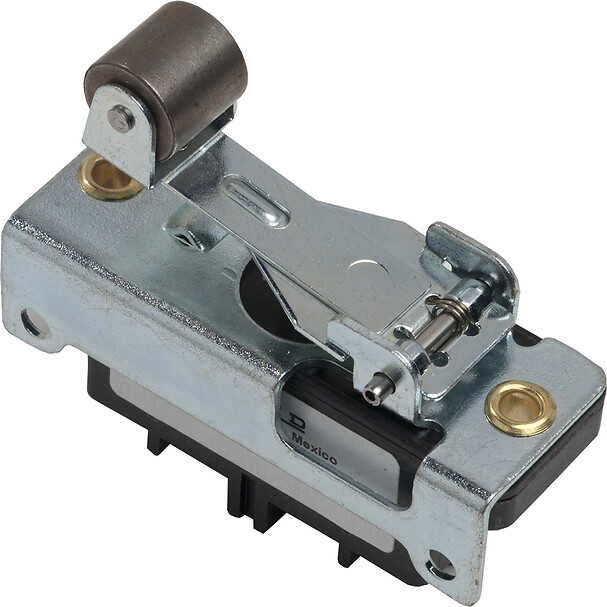

9007CB32

Snap limit switch, 9007, 600 V 10amp cb +options

END OF COMMERCIALISATION End of commercialization date : February 28th 2026 End of service date : February 28th 2026

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Snap limit switch
Device short name
9007AO/CO
Body type
Fixed
Mounting mode
Not applicable
Operator profile
Plunger head
Material
Metal
Body material
Cast zinc
Operator material
Cast zinc
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return roller lever plunger metal LH bracket + 0.22" roller
Switch actuation
By 30° cam
Type of approach
Traverse approach, 2 directions
Electrical connection
1-2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Contact operation
Snap action
Contacts type and composition
2(NC-NO), switch function: DPDT-DB
Contact form
Form ZZ
Contacts material
Silver contacts
Positive opening
Without
Terminals description ISO n°1
(1-2)NC
(3-4)NO
(5-6)NC
(7-8)NO
NEMA degree of protection
NEMA 1 conforming to Nema type 250
IP degree of protection
IP20 conforming to IEC 60529
Unit type of package 1
PCE
Package 1 height
13.462 CENTIMETER
Number of units in package 1
1
Package 1 width
17.78 CENTIMETER
Package 1 length
19.304 CENTIMETER
Package 1 weight
680.389 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
