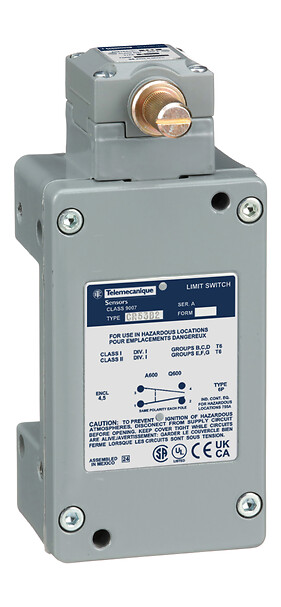

9007CR53B2
Limit switch 9007CR, rotary head, 1NC+1NO, 600 VAC, 10 A, option version
COMMERCIALISED
Expand all
Datasheet
Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch
Device short name
9007CR
Product specific application
Hazardous location box
Body type
Fixed
Head type
Rotary head
Material
Metal
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator

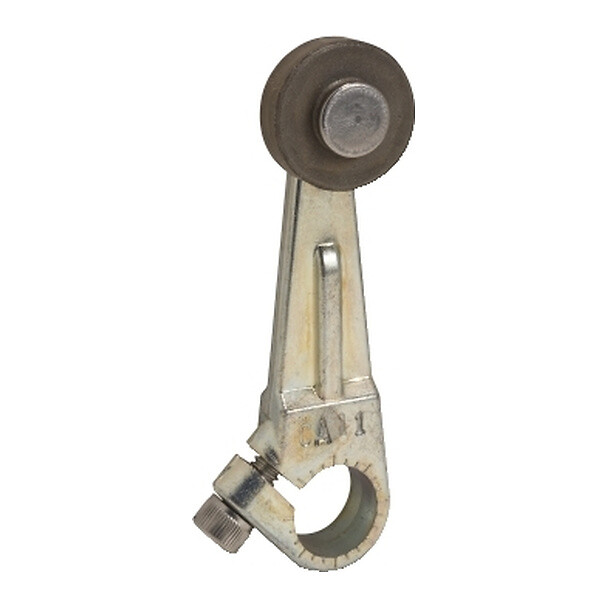

Zinc spring return without operating lever (-)9007C lever
Type of approach
Lateral approach, 1 or 2 programmable direction
Electrical connection
Screw-clamp terminals (AWG 22...AWG 12), 1-2
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts type and composition
NC-NO
Positive opening
Without
Level or class
Class II Division 1 Groups E/F/G
Class I Division 1 Groups B/C/D
Class I Division 1 Groups B/C/D
Switch actuation
CW and CCW
from left and right
from left and right
Contact operation
Snap action
Body material
Aluminium
Contacts material
Silver contacts
Head material
Zinc
Function available
Not applicable
Switch function
SPDT-DB
Contact form
Form Z
Terminals description ISO n°1
(1-2)NC
(3-4)NO
(3-4)NO
Repeat accuracy
+/- 0.002 in linear travel of cam
Local signalling
without
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Environmental characteristic
Standard environment
Protective treatment
Epoxy powder coat
Package 1 height
8.128 CENTIMETER
Package 1 width
9.398 CENTIMETER
Package 1 length
16.51 CENTIMETER
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.9979 KILOGRAM
Unit type of package 2
CAR
Number of units in package 2
1
Package 2 height
16.2 CENTIMETER
Package 2 width
7.4 CENTIMETER
Package 2 length
9.2 CENTIMETER
Package 2 weight
0.998 KILOGRAM
Unit type of package 3
PAL
Number of units in package 3
125
Package 3 height
101.6 CENTIMETER
Package 3 width
101.6 CENTIMETER
Package 3 length
121.92 CENTIMETER
Package 3 weight
125.872 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
