9007CR65B1S22

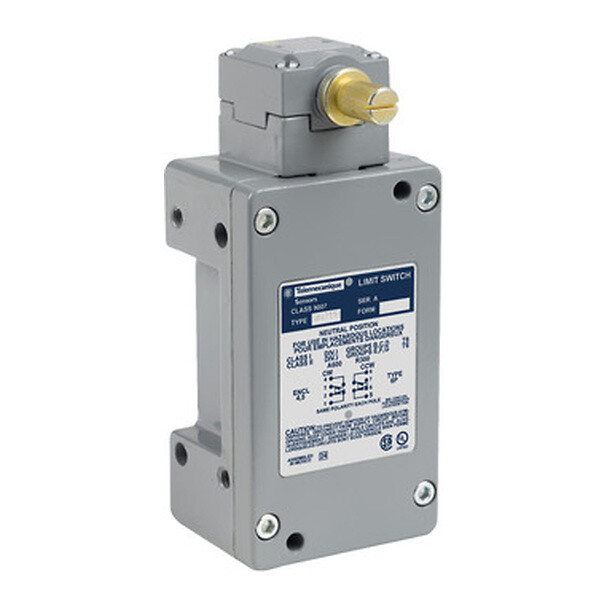

Limit switch 9007CR, rotary head, 2NC+2NO, 10 A, special version

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Series name
Heavy duty
Device short name
C
Switch actuation
CCW
Contact operation
Snap action
Specificity of operator
First stage : 10° - second stage : 2.5°
standard pre-travel
Provided equipment
Receptacle
Body material
Zinc alloy
Contacts material
Silver alloy (Ag/Ni)
Product certifications
CE
CSA
UL listed
Environmental characteristic
Hazardous location
Package 1 height
17.742 CENTIMETER
Package 1 width
6.985 CENTIMETER
Unit type of package 1
PCE
Package 1 length
45.064 CENTIMETER
Number of units in package 1
1
Package 1 weight
1.134 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Documents & Downloads

Document name
Date
Size
Catalogue for limit switches, Range 9007 (pdf)

2024-10-31

18760251

Document name
Date
Size
Class 9007 type C Limit Switches Installation Instructions (pdf)

2024-01-31

765681

Document name
Date
Size
TESEDEC0000EN_PFAS_Global_Declaration_for_9007CR65B1S22 (pdf)

2026-08-19

288724

TESEDEC0000EN_REACh_Declaration_for_9007CR65B1S22 (pdf)

2026-06-05

109715

TESEDEC0000EN_RoHS_Declaration_for_9007CR65B1S22 (pdf)

2026-06-05

109334
