9007EA9

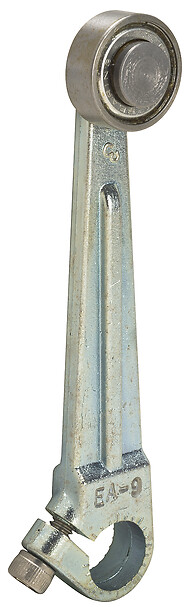

Limit switch lever 9007C, arm C, 3 in

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch lever
Device short name
9007C
Type of roller
1 steel outside roller diameter: 0.69 in - width: 0.25 in
Type of operator
Cast zinc spring return roller lever length: 3-3 in - offset: - ball bearing roller
Type of approach
Lateral approach
Movement of operating head
Rotary
Switch actuation
By 30° cam
Positive opening
Without
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.462 CENTIMETER
Package 1 width
17.78 CENTIMETER
Package 1 length
19.304 CENTIMETER
Package 1 weight
0.0454 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Documents & Downloads

Document name
Date
Size
Catalogue for limit switches, Range 9007 (pdf)

2024-10-31

18760251

Document name
Date
Size
NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

15517

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

15708

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

16037

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

19638

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

19769

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

19832

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

21112

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

21304

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

21691

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

22264

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

22402

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (pdf)

2024-07-18

25912

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

26086

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

30428

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

53738

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, Lever Arm, Cast zinc lever arm 3.00 inches long, with dia. X 0.25" wide metal roller - 3D CAD (stp)

2024-07-18T00:00:00.000Z

71866

Document name
Date
Size
TESEDEC0000EN_PFAS_Global_Declaration_for_9007EA9 (pdf)

2026-08-19

277783

TESEDEC0000EN_REACh_Declaration_for_9007EA9 (pdf)

2026-04-13

109427

TESEDEC0000EN_RoHS_Declaration_for_9007EA9 (pdf)

2026-04-13

108611
