9007HA24

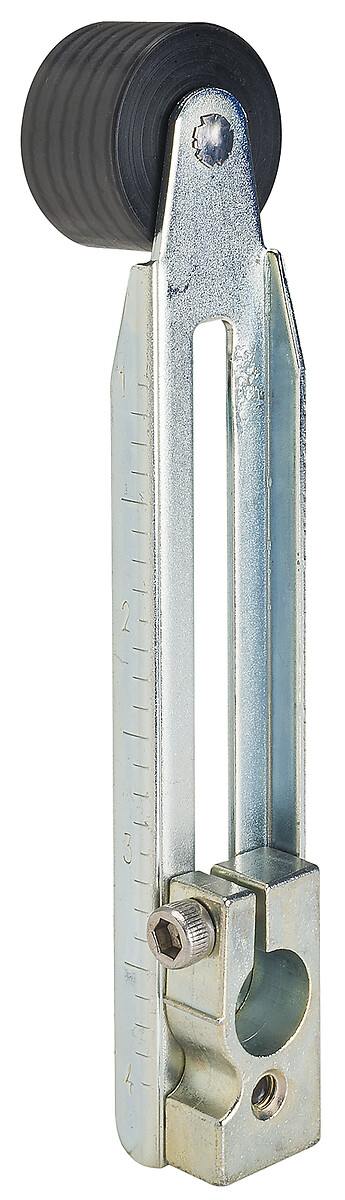

Limit switch lever 9007C, AW+C arm, option version
COMMERCIALISED
Expand all
Datasheet
Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch lever
Device short name
9007C
Type of roller

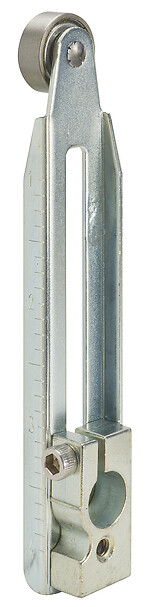

1 steel outside roller diameter: 0.69 in - width: 0.25 in
Type of operator
Cast zinc spring return adjustable roller lever length: 0.88-4 in - offset: - ball bearing roller
Type of approach
Lateral approach
Movement of operating head
Rotary
Switch actuation
By 30° cam
Positive opening
Without
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
