9007JKC

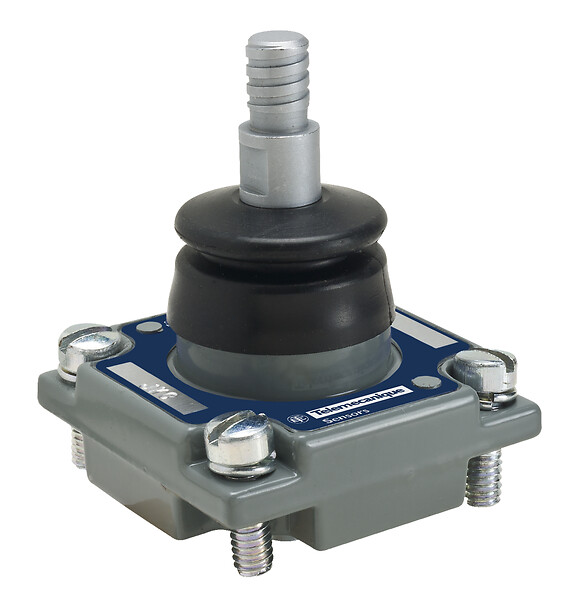

Limit switch head for 9007C

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch head
Device short name
9007C
Head type
Multi-directional head
Product compatibility
9007C
Movement of operating head
Multi-directional
Type of operator
Spring return wobble stick without operator zinc -
Type of approach
Multi-directional approach, multi-directional approach
Positive opening
Without
Switch actuation
Any direction
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.3 CENTIMETER
Package 1 width
5.1 CENTIMETER
Package 1 length
7.9 CENTIMETER
Package 1 weight
122.5 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
