9007LA11

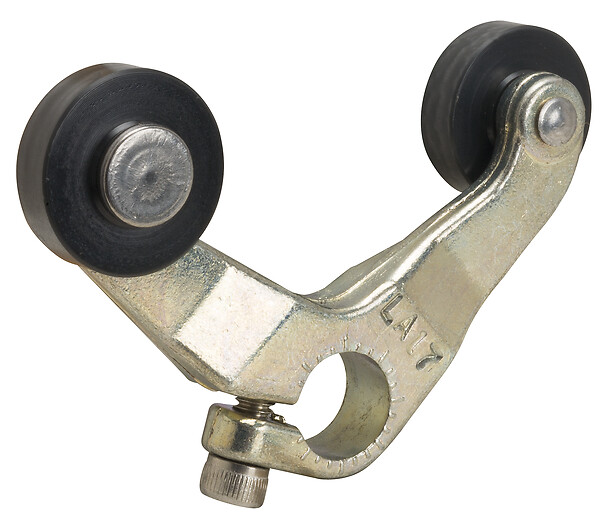

Limit switch lever 9007C, AW+C arm, option version

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch lever
Device short name
9007C
Type of roller
2 nylon RH opposite side roller diameter: 0.75 in - width: 1 in
Type of operator
Cast zinc stay put 90° forked arm with rollers length: 1.5-1.5 in - offset: - -
Type of approach
Lateral approach
Movement of operating head
Rotary
Switch actuation
By specific cam
Positive opening
Without
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.5 CENTIMETER
Package 1 width
2.6 CENTIMETER
Package 1 length
16.4 CENTIMETER
Package 1 weight
45.4 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Documents & Downloads

Document name
Date
Size
Catalogue for limit switches, Range 9007 (pdf)

2024-10-31

18760251

Document name
Date
Size
NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (stp)

2024-07-18T00:00:00.000Z

112364

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

17102

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

17111

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

19442

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

20009

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

20440

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

20440

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

20504

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

20857

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

21974

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

23995

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

25839

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (pdf)

2024-07-18

26755

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

31291

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

32469

NEMA Square D 9007 Limit Switches, 9007C Heavy Duty SemiModular 39mm Metal Body, 9007C Lever Arm, 90 Degree forked lever arm 1.50 inches long, with 0.75" dia. X 1.00" wide RH roller on opposite side - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

59696

Document name
Date
Size
TESEDEC0000EN_PFAS_Global_Declaration_for_9007LA11 (pdf)

2026-08-19

276041

TESEDEC0000EN_REACh_Declaration_for_9007LA11 (pdf)

2026-04-13

109524

TESEDEC0000EN_RoHS_Declaration_for_9007LA11 (pdf)

2026-04-13

108723
