Home Products 9007MS02S0084

9007MS02S0084

Limit switch, 9007, switch

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Miniature potted
Product or component type
Limit switch
Device short name
9007MS/ML
Sensor design
Miniature
Body type
Fixed
Head type
Plunger head
Material
Metal
Body material
Cast zinc
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return parallel roller plunger steel -
Type of approach
Lateral approach, 2 directions
Switch actuation
By 30° cam
Contacts type and composition
NC-NO
Switch function
SPDT
Contact form
Form C
Contacts material
Silver contacts
Contact operation
Snap action
Positive opening
Without
Electrical connection
Male connector M12 micro AC type 1 keyway 4 pins bottom
Terminals description ISO n°1
(1-2)NC
(1-3)NO
(4)gnd
Marking
CE
CSA
UL
Shock resistance
35 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 75-1200 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Protective treatment
Epoxy powder coat
Product certifications
CE
CSA
UL
Standards
E78403
LR 25490 Class 32 11 03
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
5.8 CENTIMETER
Package 1 length
9.4 CENTIMETER
Package 1 weight
163.3 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Documents & Downloads

Document name
Date
Size
9007ML… and 9007MS… miniature limit switches - EU declaration of conformity (pdf)

2025-06-13

622269

9007ML… and 9007MS… miniature limit switches - UK declaration of conformity (pdf)

2025-06-13

622977

Document name
Date
Size
Catalogue for limit switches, Range 9007 (pdf)

2024-10-31

18760251

Document name
Date
Size
Instruction sheet for Miniature limit switches - Class 9007, Type MS/ML (pdf)

2024-01-31

893104

Document name
Date
Size
NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dxf)

2024-07-18

13489

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (stp)

2024-07-18

137286

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dxf)

2024-07-18

15901

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dxf)

2024-07-18

18269

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dxf)

2024-07-18

18391

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dxf)

2024-07-18

18464

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dwg)

2024-07-18

19098

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dwg)

2024-07-18

19640

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dxf)

2024-07-18

19946

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dwg)

2024-07-18

20278

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dwg)

2024-07-18

20309

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dwg)

2024-07-18

20442

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dwg)

2024-07-18

20760

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (pdf)

2024-07-18

21586

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dwg)

2024-07-18

30361

NEMA Square D 9007 Limit Switches, 9007MS/ML Miniature Potted 39 mm Metal Body, parallel roller plunger, 9007M, contacts, Connector - 3D CAD (dxf)

2024-07-18

56640

Document name
Date
Size
TESEDEC0000EN_REACh_Declaration_for_9007MS02S0084 (pdf)

2026-04-13

109422

TESEDEC0000EN_RoHS_Declaration_for_9007MS02S0084 (pdf)

2026-04-13

108602

Expand all

Related products & accessories

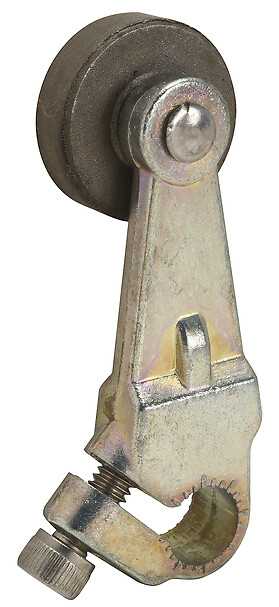

7B4N

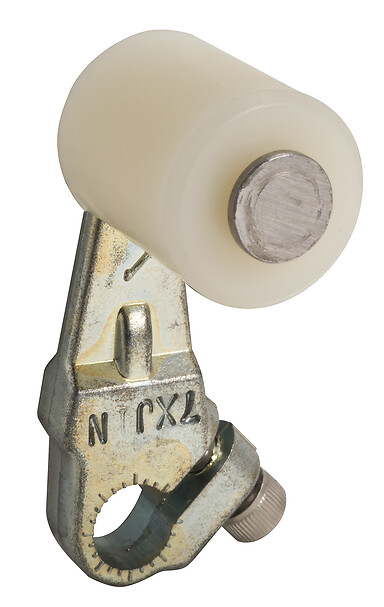

7XA1N

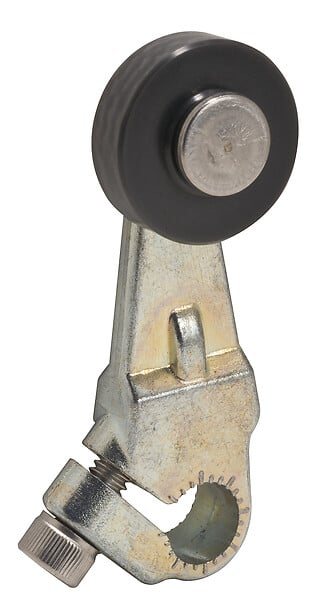

7XJ7N
