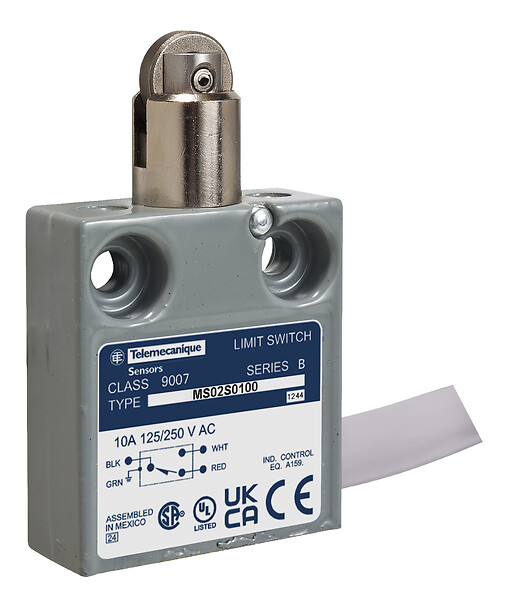

Limit switch, 9007, 240 VAC 10amp ms +options

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Miniature potted
Product or component type
Limit switch
Device short name
9007MS/ML
Sensor design
Miniature
Body type
Fixed
Head type
Plunger head
Material
Metal
Body material
Cast zinc
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return parallel roller plunger steel -
Type of approach
Lateral approach, 2 directions
Switch actuation
By 30° cam
Contacts type and composition
NC-NO
Switch function
SPDT
Contact form
Form C
Contacts material
Silver contacts
Contact operation
Snap action
Positive opening
Without
Electrical connection
Pre-wired cable side
Type of cable
SJTO cable (AWG 18), 12 ft, grey
Terminals description ISO n°1
(black)com
(green-yellow)gnd
(red)NC
(white)NO
Wire insulation material
PVC
Marking
CE
CSA
UL
Shock resistance
35 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 75-1200 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Protective treatment
Epoxy powder coat
Product certifications
CE
CSA
UL
Standards
E78403
LR 25490 Class 32 11 03
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.677 CENTIMETER
Package 1 width
3.81 CENTIMETER
Package 1 length
24.581 CENTIMETER
Package 1 weight
544.311 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
