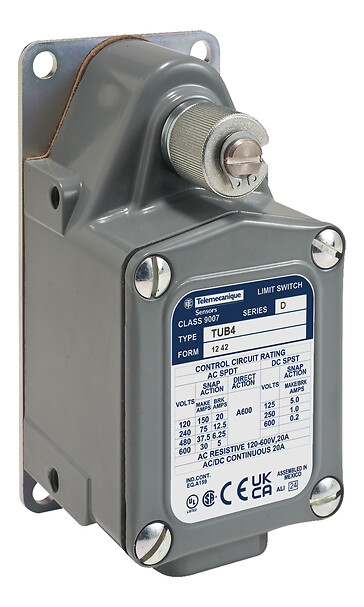

9007TUB8

Limit switch, 9007, 600 VAC 30amp t +options

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Device application
Universal mill switch
Series name
Severe duty mill
Product or component type
Limit switch
Device short name
9007T/FT
Body type
Fixed
Head type
Rotary head
Base plate style
Style B
Body material
Cast zinc
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Stay put without operating lever
Switch actuation
CW and CCW
from left or right
Contacts material
Silver flashed copper
Contact operation
Snap action
Function available
Neutral position
Type of approach
Lateral approach
Positive opening
Without
Electrical connection
Screw-clamp terminals AWG 22...AWG 12
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Switch function
SPDT-DB
Contact form
Form Z
Contacts usage
Not applicable
Repeat accuracy
+/- 0.004 in linear travel of cam on 1.5 in lever arm
Contact code designation
A600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation, A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation, A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation, A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation, P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation, P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation, P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation
Terminals description ISO n°1
A (left side contact)
B (right side contact)
Protective treatment
Corrosion resistant gray paint
Shock resistance
30 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 10-55 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
17.742 CENTIMETER
Package 1 width
6.985 CENTIMETER
Package 1 length
45.064 CENTIMETER
Package 1 weight
1.134 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
