9013GHG2S31J21

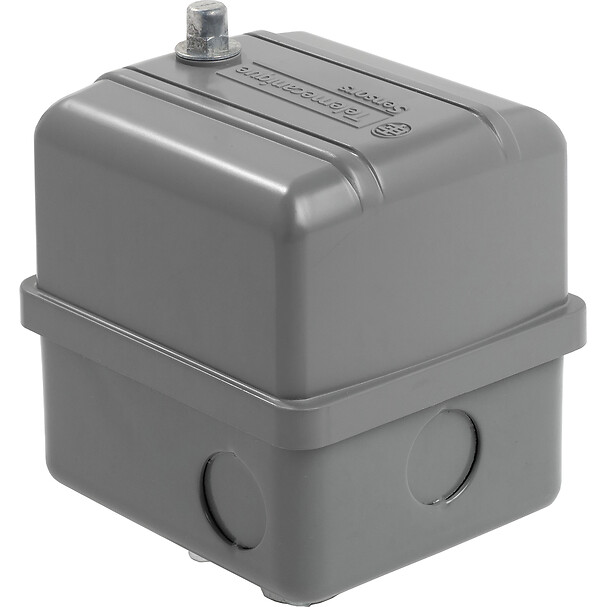

Pumptrol, pressure switch 480 VAC 10 A g special

arrow

Commercialized

green premium
Download pdf datasheet Find a distributor

Expand all

Datasheet

Device short name
G
Enclosure type
Standard environment enclosure for indoor
Product specific application
Control electrically driven water pumps and air compressors
Range of produc
Square D Pumptrol
Switch application
Standard
Adjustable range on rising pressure
448.16…1378.95 kPa
Approximate adjustable differential
137.90…275.79 kPa
Depth
93.47 mm
Electrical connection
Screw clamp terminal
Fixing mode
By brackets
Fluid connection type
0.25 inch NPSF internal
Height
145.29 mm
Material
Zinc plated steel: flange
Materials in contact with fluid
Nitrile (Buna-N) diaphragm
Maximum pressure
300 psig
Motor power hp
2 hp at 115 V AC, 1 phase
3 hp at 115 V AC, 3 phases
3 hp at 230 V AC, 1 phase
5 hp at 230 V AC, 3 phases
5 hp at 460/575 V AC, 1 phase
5 hp at 460/575 V AC, 3 phases
Number of poles
2
Permissible voltage
575 V AC
Pressure actuator
Diaphragm
Pressure setting range
206.84…344.74 kPa
Net weight
1.02 kg
Range on decreasing pressure
275.79…1172.11 kPa
Switch function
DPST
Width
87.38 mm
NEMA degree of protection
NEMA 1
Product certifications
UL listed file E12158 CCN NKPZ
CSA file LR25490
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
25.806 cm
Package 1 Width
10.16 cm
Package 1 Length
65.548 cm
Package 1 Weight
929.864 g
Sustainable offer status
Green Premium product
REACh Regulation
REACh Declaration
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Yes
Environmental Disclosure
Product Environmental Profile
Circularity Profile
End of Life Information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
