9038AG1N5

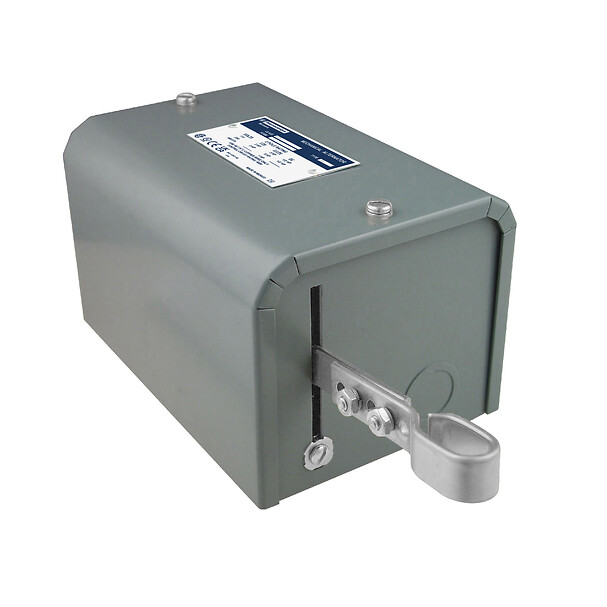

Mechanical alternator, Pumptrol, mech open tank, NEMA 1, pedestal mounted, 4 NC DPST DB contacts
Commercialized
Expand all
Datasheet
Range of produc
Pumptrol
Product or component type
Mechanical alternator
Device application
Open tank
Device short name
9038A
Product specific application
Mechanically alternating the operation of two pumps or motors
Electrical circuit type
Power circuit with control duty alarm
Quantity per set
Set of 1
Type of packing
Individual
Product destination
For open tank
Device mounting
Pedestal
Cable entry number
4 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition
4 NC, snap action, DPST-DB, Form YY
Controlled fluid
Fresh water at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Motor power kW
1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation
Contacts close on liquid rise
Float movement
Variable adjustable
Float position
Any
Float rod angle
Vertical
Force down to trip
20 ozf at minimum adjustment
17 ozf at maximum adjustment
17 ozf at maximum adjustment
Force up to trip
18 ozf at minimum adjustment
16 ozf at maximum adjustment
16 ozf at maximum adjustment
Short-circuit protection
20 A cartridge fuse, type gG
Local signalling
Without
Enclosure material
Painted cold-rolled steel
Operating position
Vertical position only
Electrical durability
100 cycles, operating rate <60 cyc/mn
Mechanical durability
300 cycles
Terminal block type
8 terminals
Maximum operating rate
60 cyc/mn
[Ui] rated insulation voltage
575 V conforming to UL 508
Terminals description ISO n°1
Line-load-load-line
Factory modification
Addition of a third, high-water alarm circuit (SPST-NO-DB)
Kit composition
Rod and float are to be choosen in accessories
Float switch
Float switch
Standards
UL 508
CE
CE
Ambient air temperature for operation
-30…93 °C
Ambient air temperature for storage
-30…93 °C
NEMA degree of protection
NEMA 1 conforming to UL 50
Product certifications
UL listed
CSA
CSA
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
29.871 cm
Package 1 Width
11.76 cm
Package 1 Length
75.872 cm
Package 1 Weight
2.195 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Documents & Downloads
Document name
Date
Size
Document name
Date
Size
11/23/2023
182.8 kB
Document name
Date
Size
11/23/2023
195.3 kB
11/23/2023
195.3 kB
Document name
Date
Size
11/23/2023
297.3 kB
Expand all
Related products & accessoires
9038CG36N4N5

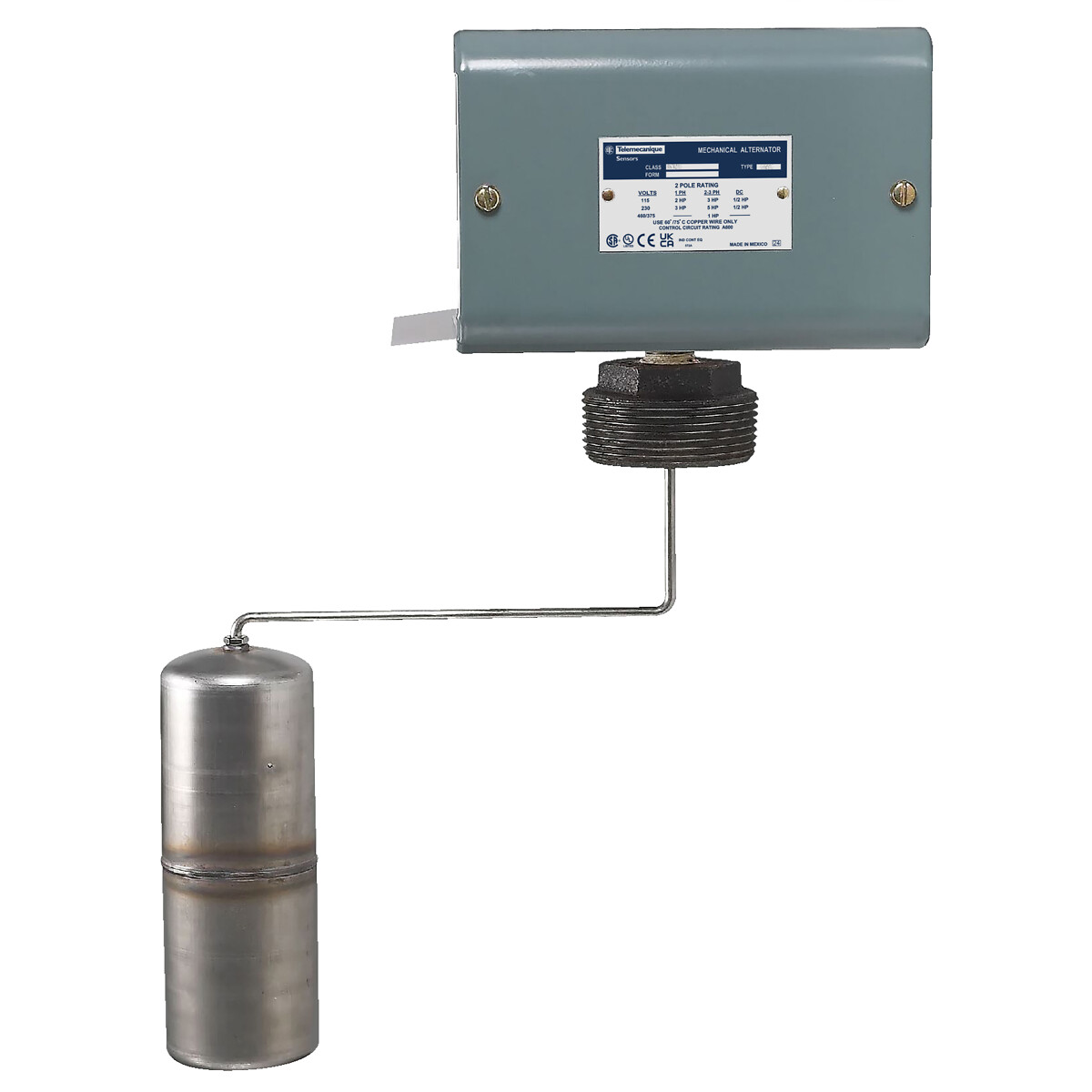

Mechanical alternator, Pumptrol, mech closed tank, NEMA 1, screw in bushing, 4 NC DPST DB contacts
