9038CG32
Mechanical alternator, Pumptrol, mech closed tank, NEMA 1, screw in bushing, 4 NC DPST DB contacts
Commercialized
Expand all
Datasheet
Range of produc
Pumptrol
Product or component type
Mechanical alternator
Device application
Closed tank with bushing
Device short name
9038C
Product specific application
Mechanically alternating the operation of two pumps or motors
Electrical circuit type
Power circuit
Quantity per set
Set of 1
Type of packing
Individual
Product destination
For closed tank
Device mounting
Screw-in bushing
Cable entry number
8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition
4 NC, snap action, DPST-DB, Form YY
Controlled fluid
Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW
1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation
Contacts close on liquid rise
Float movement
6.5...13 in adjustable
Float position
Left
Float rod angle
90° (offset)
Short-circuit protection
20 A cartridge fuse, type gG
Local signalling
With external pointer
Materials in contact with fluid
Yellow brass
Stainless steel 316
Cast iron
Stainlesss steel 304
Nitrile (Buna-N) or equivalent rubber
Stainless steel 316
Cast iron
Stainlesss steel 304
Nitrile (Buna-N) or equivalent rubber
Enclosure material
Painted cold-rolled steel
Operating position
Vertical position only
Electrical durability
100 cycles, operating rate <60 cyc/mn
Mechanical durability
300 cycles
Terminal block type
8 terminals
Maximum operating rate
60 cyc/mn
[Ui] rated insulation voltage
575 V conforming to UL 508
Terminals description ISO n°1
Line-load-load-line
Factory modification
Without

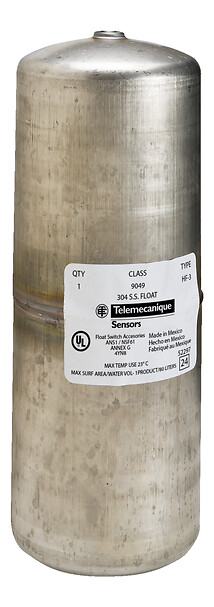

Kit composition
Float switch
Float
Rod
Float
Rod
Standards
CE
UL 508
UL 508
Ambient air temperature for operation
-30…93 °C
Ambient air temperature for storage
-30…93 °C
NEMA degree of protection
NEMA 1 conforming to UL 50
Product certifications
UL listed
CSA
CSA
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
23.9 cm
Package 1 Width
28.4 cm
Package 1 Length
30.7 cm
Package 1 Weight
3.81 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
