XCKL110H7

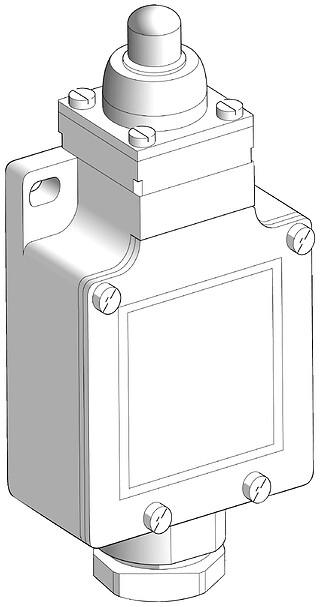

Limit switch, Limit switches XC Standard, XCKL, metal end plunger, 1NC+1 NO, snap action, 1/2NPT
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKL
Body type
Fixed
Head type
Plunger head
Material
Metal
Body material
Zamak
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return plunger metal
Type of approach
Vertical approach, 1 direction
Cable entry
1 entry tapped for 1/2" NPT cable gland
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Switch actuation
On end
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form
Zb
Positive opening
With
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Repeat accuracy
0.05 mm on the tripping points with 1 million operating cycles
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK05 conforming to IEC 62262
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
IEC 60204-1
IEC 60947-5-1
UL 508
Product certifications
CSA
UL
UL
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.2 CENTIMETER
Package 1 width
14.4 CENTIMETER
Package 1 length
3.2 CENTIMETER
Package 1 weight
0.244 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
32
Package 2 height
15 CENTIMETER
Unit type of package 3
CAR
Package 2 width
30 CENTIMETER
Number of units in package 3
1
Package 2 length
40 CENTIMETER
Package 3 height
0.1 CENTIMETER
Package 2 weight
8.039 KILOGRAM
Package 3 width
0.1 CENTIMETER
Package 3 length
0.1 CENTIMETER
Package 3 weight
0.255 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) 1/2" NPT
- Ø : 2 elongated holes Ø 5.2 x 6.2
Mounting with Cable Entry
Position of Cable Gland
- (1) Recommended
- (2) To be avoided
Wiring Diagram
2-pole NC + NO Snap Action
Characteristics of Actuation
Switch Actuation on End

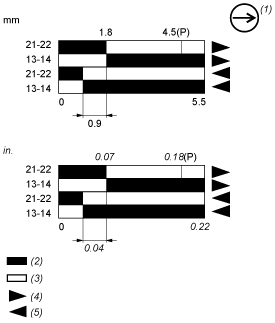

Functionnal Diagram
- (P) Positive opening point
- (1) NC contact with positive opening operation
- (2) Closed
- (3) Open
- (4) Tripping
- (5) Resetting
Expand all
Documents & Downloads
Document name
Date
Size
2005-01-13
111913
2005-01-13
18978
2005-01-13T00:00:00.000Z
190604
2005-01-13T00:00:00.000Z
263647
2005-01-13T00:00:00.000Z
271608
2005-01-13
28620
2005-01-13
378702
2005-01-13T00:00:00.000Z
384406
2005-01-13
392754
Document name
Date
Size
2026-04-14
109651
Document name
Date
Size
2026-04-13
108935
Document name
Date
Size
2024-10-21
210518
2024-10-21
225137
