XCKMR54D1H29EX

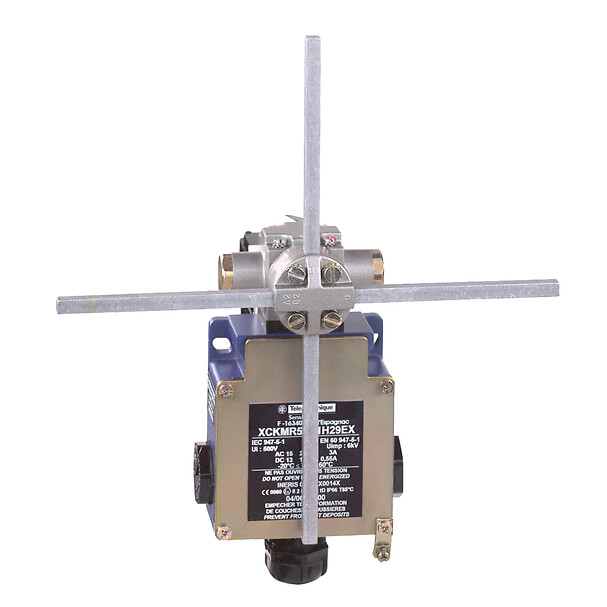

Limit switch, Limit switches XC Standard, XCKMR, square rod 6 mm crossed, 2 x (2 NC), ATEX/IECEx
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Product specific application
For hoisting and mechanical handling applications
Device short name
XCKMR
Body type
Fixed
Head type
Rotary head
Material
Metal
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Stay put crossed rods lever metal square rod 6 mm, L = 200 mm
Switch actuation
By any moving part
Type of approach
Lateral approach, 2 directions
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts type and composition
2 x (2 NC)
Contacts insulation form
Zb
Contact operation
Slow-break, staggered
Contact block per direction [control circuit]
1 per direction
Positive opening
With
IP degree of protection
IP66 conforming to IEC 60529
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1, A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to IEC 60947-5-1, Q150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Marking
II2 D-Ex tb IIIC T85°C Db IP66/67
Shock resistance
50 gn conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Electrical shock protection class
Class I conforming to IEC 60536, class I conforming to NF C 20-030
Protective treatment
TC
Dust zone
Zone 21 - 22
Product certifications
IEC-Ex INE 17.0020X
INERIS 04ATEX0014X
INERIS 04ATEX0014X
Standards
IEC 60079-0
IEC 60079-31
IEC 60079-31
Directives
2014/34/EU - ATEX directive
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 length
23 CENTIMETER
Package 1 weight
0.762 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
10
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.9 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) 3 tapped entries ISO M20x1.5
- (2) 2 centring holes Ø 3.9 ± 0.2, for cover fixing holes alignment.
Wiring Diagram
2 x 2-pole NC+NC Break Before Make, Slow Break (Non Interchangeable Contacts)
Functionnal Diagram
- (1) Triangle symbol marked on top of head.
