XCMD2101M12
limit switch XCMD - with rotary head W/O operating lever - 1CO - snap - M12
END OF COMMERCIALISATION End of commercialization date : January 04th 2022 End of service date : January 04th 2022
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCMD
Sensor design
Miniature
Body type
Plug-in body
Head type
Rotary head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return without operating lever
Type of approach
Lateral approach, 2 directions
Contacts type and composition
1 C/O
Contact operation
Snap action
Electrical connection
Male connector M12, 4 pins
Contacts insulation form
Za
Positive opening
Without
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
IK degree of protection
IK06 conforming to EN 62262
Protective treatment
TC
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CSA C22.2 No 14
EN/IEC 60204-1
EN/IEC 60947-5-1
UL 508
EN/IEC 60204-1
EN/IEC 60947-5-1
UL 508
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 CENTIMETER
Package 1 width
7 CENTIMETER
Package 1 length
5.3 CENTIMETER
Package 1 weight
117 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

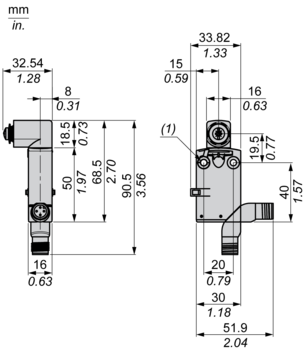

Dimensions
Mounting with Rotary Heads and Levers
Type of Cam
Setting-up with Head ZCE01 and ZCE09
Wiring Diagram
4-pin, M12, 3A-250V
Characteristics of Actuation
Switch Actuation on End
Functional Diagram
