XCRE18

Limit switch, Limit switches XC Standard, XCR, metal stay put crossed rods lever square rod 6 mm, 2X(1NC+NO)

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Characteristics
Technical Drawings
Documents & Downloads
Related products & accessories

Expand all

Datasheet

Range of product

OsiSense XC

Series name

Special format

Product or component type

Limit switch

Product specific application

For hoisting and mechanical handling applications

Device short name

XCR

Sensor design

Body type

Fixed

Head type

Rotary head

Material

Metal

Fixing mode

By the body

Movement of operating head

Rotary

Type of operator

Stay put crossed rods lever metal square rod 6 mm

Type of approach

Lateral approach, 2 directions

Body material

Zinc alloy

Contacts type and composition

2 x (1 NC + 1 NO)

Contact operation

Snap action

Cable entry

1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm conforming to NF C 68-300

Electrical connection

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Contact block per direction [control circuit]

2 per direction

Switch actuation

By any moving part

Positive opening

With

Contacts insulation form

Contact code designation

A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

Resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3

Terminals description ISO n°1

(13-14)NO
(21-22)NC

Shock resistance

68 gn conforming to IEC 60068-2-27

Vibration resistance

9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP degree of protection

IP54 conforming to IEC 60529

Overvoltage category

Class I conforming to IEC 61140, class I conforming to NF C 20-030

Protective treatment

Product certifications

CCC
CSA

Standards

CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
NF C 79-130

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

8.4 CENTIMETER

Package 1 width

10.4 CENTIMETER

Package 1 length

20.6 CENTIMETER

Package 1 weight

1.05 KILOGRAM

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15 CENTIMETER

Package 2 width

30 CENTIMETER

Package 2 length

40 CENTIMETER

Package 2 weight

5.72 KILOGRAM

Unit type of package 3

CAR

Number of units in package 3

Package 3 height

8.5 CENTIMETER

Package 3 width

10.3 CENTIMETER

Package 3 length

20.5 CENTIMETER

Package 3 weight

1.053 KILOGRAM

Indivisible sale quantity

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions

(1) 1 tapped entry for n° 13 cable gland.
(2) Rod length: 200 mm.
(3) Rod length: 200 mm.

Wiring Diagram

Two 2-pole NC + NO Snap Action

(A) 1 contact
(B) 2 contact

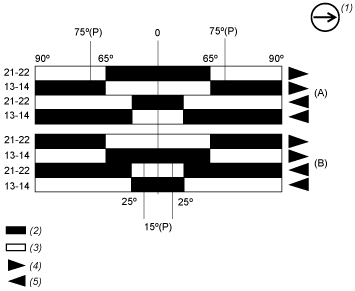

Functionnal Diagram

(P) Positive opening point
(A) 1st contact
(B) 2nd contact
(1) NC contact with positive opening operation
(2) Closed
(3) Open
(4) Tripping
(5) Resetting
