XMLK100P2D23
Electronic pressure sensors, Pressure sensors XM, sensor XMLK, 0...100 PSI, 1/4NPT, 4...20 mA, M12, set of 1
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electronic pressure sensors
Pressure sensor type
Pressure transmitter
Pressure sensor name
XMLK
Electrical circuit type
Control circuit
Local display
Without
Controlled fluid
Air (0-80 °C), fresh water (0-80 °C)
Fluid connection type
1/4" - 18 NPT (male)
Electrical connection
1 male connector M12 4 pins
[Us] rated supply voltage
24 V DC SELV (voltage limits: 8-33 V)
Current consumption
20 mA
Type of output signal
Analogue
Analogue output function
4...20 mA, 2-wire
Quantity per set
Set of 1
Type of packing
Individual
Materials in contact with fluid
Ceramic
nitrile (NBR)
stainless steel type AISI 303
nitrile (NBR)
stainless steel type AISI 303
Operating position
Any position
Protection type
Load short-circuit
reverse polarity
reverse polarity
Electromagnetic compatibility
Electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 6 kV contact, susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...1000 MHz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 2 kV, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 500 V 12 Ohm, 1 kV 42 Ohm, radiated RF fields conforming to IEC 61000-4-6 10 V 0.15...80 MHz, immunity to magnetic fields conforming to IEC 61000-4-8 30 A/m 50 Hz
Response time on output
< 5 ms
Measurement accuracy
+/- 1 % de la plage de mesure
Accuracy
0.1 % of the measuring range
Drift of the sensitivity
+/- 0,04 % of measuring range/°K
Drift of the zero point
+/- 0,03 % of measuring range/°K
Repeat accuracy
+/- 1 % de la plage de mesure
Scale type
Fixed differential
Standards
CE
IEC 61326-2-3
IEC 61326-2-3
Product certifications
CSA C22-2 No 14
RCM
UL 508
RCM
UL 508
Protective treatment
TC
Vibration resistance
20 gn (f = 9-2000 Hz) conforming to IEC 60068-2-6
Shock resistance
25 gn for 11 ms conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529
NEMA degree of protection
NEMA 4
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 CENTIMETER
Package 1 width
8.2 CENTIMETER
Package 1 length
16.2 CENTIMETER
Package 1 weight
0.125 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
24
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.17 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all

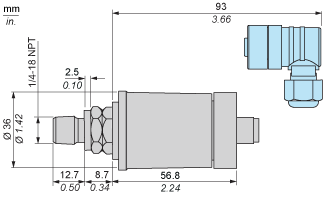

Technical Drawings
