XS1M18MA250K
Inductive proximity sensors XS, inductive sensor XS1 M18, L72mm, brass, Sn5mm, 24...240VAC/DC, 1/2"
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Wiring configuration
2-wire
Sensor name
XS1
Device application
2-wire DC short-circuit protection
Sensor design
Cylindrical M18
Protection type
Short-circuit protection multi voltage
Size
72 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Material
Metal
Electrical connection
Male connector 1/2"20 UNF, 3 pins
[Us] rated supply voltage
24...210 V DC, 24...240 V AC 50/60 Hz
Output circuit type
AC/DC
Switching capacity in mA
5...300 mA AC with overload and short-circuit protection, 5...200 mA DC with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M18 x 1
Front material
PPS
Sensing range
> 4...8 mm
Differential travel
1...15 % of Sr
Residual current
1.5 mA open state
Status LED
Output state: 1 LED (yellow), supply on: 1 LED (green)
Switching frequency
<= 2000 Hz DC, <= 25 Hz AC
Voltage drop
<5.5 V (closed state)
Delay first up
70 MILLISECOND
Delay response
2 MILLISECOND
Marking
CE
Delay recovery
4 MILLISECOND
Product certifications
CCC
CSA
UL
CSA
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-7
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.7 CENTIMETER
Package 1 width
9.5 CENTIMETER
Package 1 length
4.1 CENTIMETER
Package 1 weight
0.063 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.837 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

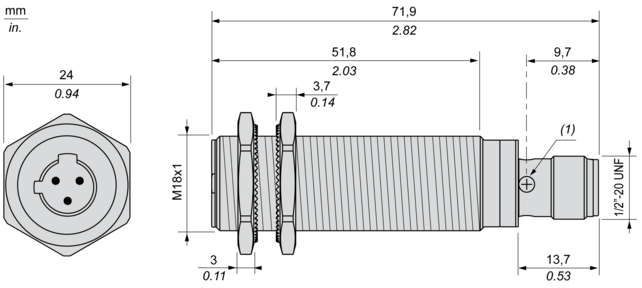

Dimensions
