Inductive proximity sensors XS, inductive sensor XS1 M18, L70mm, stainless, Sn5mm, 12...24 VDC, M12
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Sensor name
XS1
Device application
Selective detection of non ferrous materials
Sensor design
Cylindrical M18
Size
70 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Discrete output type
PNP
Material
Stainless steel
Electrical connection
Male connector M12, 4 pins
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Output circuit type
DC
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Stainless steel : 304 CU
Detection face
Frontal
Thread type
M18 x 1
Front material
PPS
Sensing range
> 4...8 mm
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 1000 Hz
Voltage drop
<2.6 V (closed)
Current consumption
0...15 mA no-load
Delay first up
10 MILLISECOND
Delay response
0.3 MILLISECOND
Marking
CE
Delay recovery
0.7 MILLISECOND
Product certifications
CSA
UL
UL
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 CENTIMETER
Package 1 width
8.1 CENTIMETER
Package 1 length
7.2 CENTIMETER
Package 1 weight
0.0709 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
9
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
0.874 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
7.2 CENTIMETER
Package 3 width
4.5 CENTIMETER
Package 3 length
8.1 CENTIMETER
Package 3 weight
0.071 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

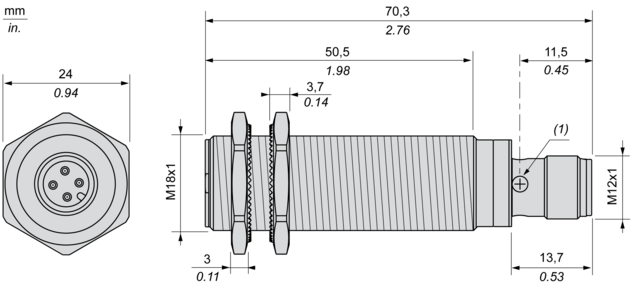

Dimensions
