XS2M30MA250K
Inductive proximity sensors XS, inductive sensor XS2 M30, L75mm, brass, Sn15mm, 24...240VAC/DC, 1/2"
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Wiring configuration
2-wire
Sensor name
XS2
Device application
2-wire DC short-circuit protection
Sensor design
Cylindrical M30
Protection type
Short-circuit protection multi voltage
Size
75 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Non flush mountable
Material
Metal
Electrical connection
Male connector 1/2"20 UNF, 3 pins
[Us] rated supply voltage
24...210 V DC, 24...240 V AC 50/60 Hz
Output circuit type
AC/DC
Switching capacity in mA
5...300 mA AC with overload and short-circuit protection, 5...200 mA DC with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M30 x 1.5
Front material
PPS
Sensing range
8...15 mm
Differential travel
1...15 % of Sr
Residual current
1.5 mA open state
Status LED
Output state: 1 LED (yellow), supply on: 1 LED (green)
Switching frequency
<= 1000 Hz DC, <= 25 Hz AC
Voltage drop
<5.5 V (closed state)
Delay first up
70 MILLISECOND
Delay response
2 MILLISECOND
Marking
CE
Delay recovery
10 MILLISECOND
Product certifications
CCC
CSA
UL
CSA
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-7
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.6 CENTIMETER
Package 1 width
11.3 CENTIMETER
Package 1 length
11.8 CENTIMETER
Package 1 weight
0.148 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.597 KILOGRAM
Unit type of package 3
BAG
Number of units in package 3
1
Package 3 height
3 CENTIMETER
Package 3 width
25 CENTIMETER
Package 3 length
20 CENTIMETER
Package 3 weight
0.155 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

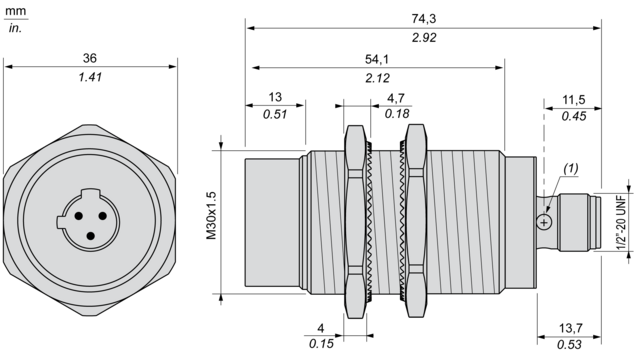

Dimensions
Minimum Mounting Distances
Wiring Schemes
Performance Curves
Standard Steel Target : 45x45x1 mm
