XS9C2A1PCM12
Inductive proximity sensors XS, inductive sensor XS9 40x40x70, PBT, Sn20 mm, 12...24 VDC, M12
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application, high performance
Sensor type
Inductive proximity sensor
Device application
Factor 1 (Fe/Nfe)
welding machine
welding machine
Sensor name
XS9
Sensor design
Form 40 x 40 x 70
Size
70 mm
Body type
Fixed
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO + 1 NC
Electrical connection
Male connector M12, 4 pins
Discrete output type
PNP
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Output circuit type
DC
Detection face
5 positions turret head
Front material
PBT
Repeat accuracy
<= 3% of Sr
Differential travel
3...15% of Sr
Sensing range
> 15...40 mm
Status LED
Supply on: 1 LED (green), output state: 1 LED (yellow)
Switching frequency
<= 250 Hz
Current consumption
0...30 mA no-load
Voltage drop
<2 V (closed)
Delay first up
15 MILLISECOND
Marking
CE
Delay response
2.5 MILLISECOND
Delay recovery
2.5 MILLISECOND
Product certifications
CSA
UL
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 CENTIMETER
Package 1 width
8.5 CENTIMETER
Package 1 weight
0.137 KILOGRAM
Package 1 length
4.1 CENTIMETER
Unit type of package 2
S01
Number of units in package 2
25
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.075 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
42
Package 3 height
30 CENTIMETER
Package 3 width
15 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
6.2865 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Mounting
Head Positions
Setting-up

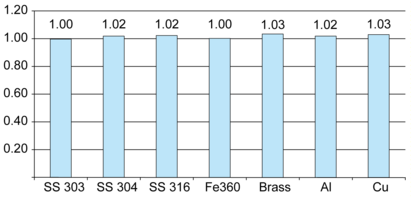

Sensing Distance Correction Factor
Setting-up

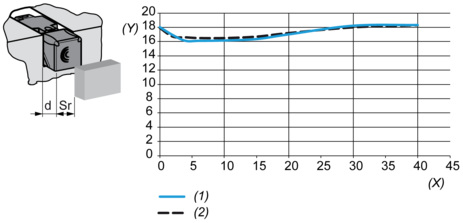

Operating Distance (According to the Sensor’s Level of Flush Mounting)
