XT230A1PCM12
Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, 12...24 V DC
COMMERCIALISED
Expand all
Datasheet
Sensor type
Capacitive proximity sensor
Product specific application
Detection of insulated or conductive materials
Sensor name
XT2
Sensor design
Cylindrical M30
Size
74.5 mm
Body type
Fixed
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Enclosure material
Plastic
Type of output signal
Discrete
Wiring technique
4-wire
Discrete output function
1 NC + 1 NO
Output circuit type
DC
Electrical connection
Male connector M12, 4 pins
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Delay response
15 MILLISECOND
IP degree of protection
IP67 double insulation conforming to IEC 60529
ISO thread
M30 x 1.5
Detection face
Frontal
Differential travel
< 1...20 % Sr
Repeat accuracy
< 5 % Sr
Status LED
Output state indication: 1 LED (yellow)
Residual current
100 mA open state
Switching frequency
<= 150 Hz
Voltage drop
<2.5 V (closed)
Current consumption
< 25 mA
Delay first up
100 MILLISECOND
Delay recovery
15 MILLISECOND
Marking
CE
Setting-up
Sensitivity by potentiometer
Standards
IEC 60947-5-2
Product certifications
cULus
Vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.5 CENTIMETER
Package 1 width
21 CENTIMETER
Package 1 length
15 CENTIMETER
Package 1 weight
0.081 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
60
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.315 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

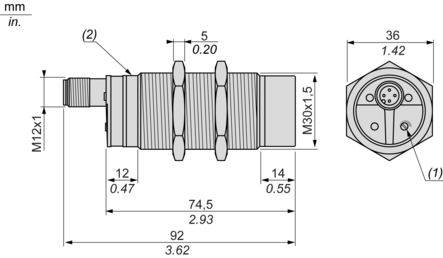

Dimensions
Setting-up
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Adjustment
Sensitivity Adjustment
Wiring Diagram
Connector Version
Connector Version
