XT230A2MDB
Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, 24...240 V AC
COMMERCIALISED
Expand all
Datasheet
Sensor type
Capacitive proximity sensor
Product specific application
Animal feeding
detection of insulated or conductive materials
detection of insulated or conductive materials
Sensor name
XT2
Sensor design
Cylindrical M30
Size
100 mm
Body type
Fixed
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Enclosure material
Plastic
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO or 1 NC programmable
Output circuit type
AC
DC
DC
Electrical connection
Screw clamp terminal
[Us] rated supply voltage
24...240 V AC 50...60 Hz
Delay response
10 MILLISECOND
IP degree of protection
IP65 conforming to IEC 60529
ISO thread
M30 x 1.5
Detection face
Frontal
Cable entry
-
Differential travel
< 1...15 % Sr
Repeat accuracy
< 5 % Sr
Status LED
Output state indication: 1 LED (yellow)
Residual current
120 mA open state
Switching frequency
<= 40 Hz
Voltage drop
<2 V (closed)
Current consumption
< 3 mA
Delay first up
100 MILLISECOND
Delay recovery
10 MILLISECOND
Marking
CE
Setting-up
Sensitivity by potentiometer
Standards
IEC 60947-5-2
UL 61010-1
UL 61010-1
Product certifications
cULus
Vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Electrical insulation class
Class I
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5 CENTIMETER
Package 1 width
6 CENTIMETER
Package 1 length
12 CENTIMETER
Package 1 weight
0.1 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
60
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
6.243 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

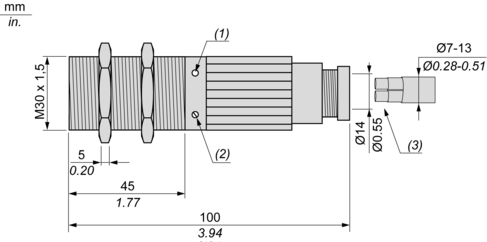

Dimensions
