XU5M18U1D

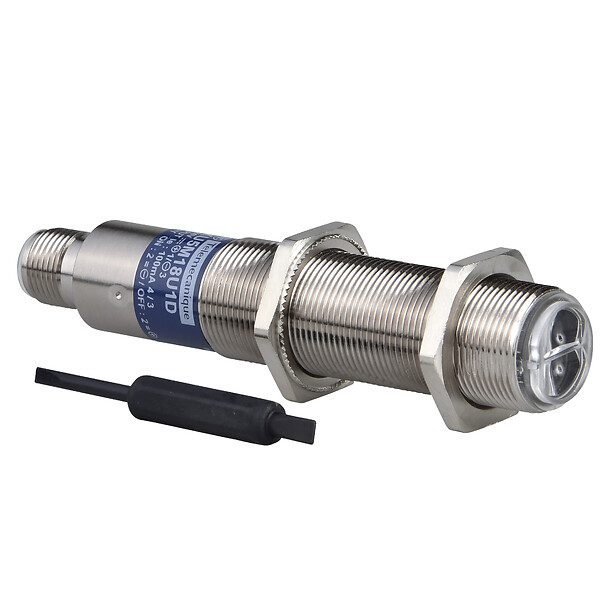

Photoelectric sensors XU, XU5, diffuse, luminescence, Sn 80 mm, 12...24 VDC, M12
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XU5
Series name
Application packaging
Product specific application
Luminescence
Enclosure material
Nickel plated brass
Electronic sensor type
Photo-electric sensor
Sensor design
M18
Electrical connection
1 male connector M12, 4 pins
Material
Metal
Wiring technique
3-wire
Detection system
Diffuse
Emission
-
Discrete output function
1 NO
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
PNP
Delay response
0.5 MILLISECOND
Setting-up
Sensitivity adjustment with potentiometer
Current consumption
<= 20 mA no-load
Status LED
-
Output type
Solid state
Switching capacity in mA
<= 100 mA (reverse polarity, overload and short-circuit protection)
Lens material
PMMA
Add on output
Without
Time delay range
20 ms off-delay activation/deactivation by cabling method delay
Maximum voltage drop
<1.5 V (closed state), PNP
Delay first up
100 MILLISECOND
Delay recovery
0.5 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 0.6 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
7.1 CENTIMETER
Package 1 width
9.6 CENTIMETER
Package 1 length
4.3 CENTIMETER
Package 1 weight
0.088 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
11
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.193 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
9.5 CENTIMETER
Package 3 width
4.2 CENTIMETER
Package 3 length
6.6 CENTIMETER
Package 3 weight
0.088 KILOGRAM
Indivisible sale quantity
1
