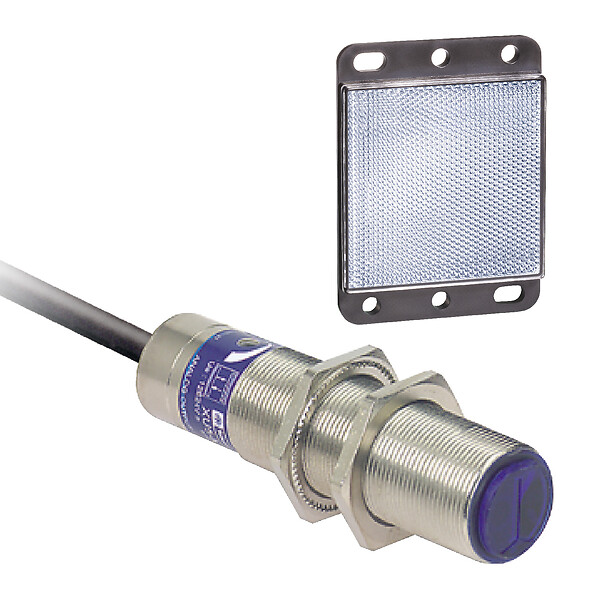

XU9M18MB230
Photoelectric sensors XU, XU9, polarised, Sn 2 m, 24...240VAC/DC, cable 2 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XU9
Series name
General purpose single mode
Product specific application
Not applicable
Enclosure material
Nickel plated brass
Electronic sensor type
Photo-electric sensor
Sensor design
Cylindrical M18
Electrical connection
Cable
Material
Metal
Wiring technique
2-wire
Detection system
Polarised reflex
Emission
Red polarised reflex
Kit composition
Reflector XUZC50
sensor
sensor
Discrete output function
1 NC
[Us] rated supply voltage
24...240 V AC/DC
Type of output signal
Discrete
Line of sight type
Axial
Supply circuit type
AC/DC
Switching frequency
<= 25 Hz
Delay response
20 MILLISECOND
Setting-up
Sensitivity adjustment
Output type
Solid state
Switching capacity in mA
10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load)
Lens material
PMMA
Add on output
Without
Status LED
1 LED (yellow) for output state, 1 LED (red) for instability
Sensing range
> 1...5 m
Maximum voltage drop
<6 V (closed state)
Delay first up
300 MILLISECOND
Residual current
-
Delay recovery
20 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
9.4 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
0.152 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.654 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
13 CENTIMETER
Package 3 width
4.1 CENTIMETER
Package 3 length
9.4 CENTIMETER
Package 3 weight
0.154 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Wiring Schemes
2-wire AC or DC
- BU : Blue
- BN : Brown
Detection Curves
Polarised Reflex System
