XUAH0203
Photoelectric sensors XU, XUA, emitter, 12...24 VDC, cable 2 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUA
Series name
Application assembly
Enclosure material
Nickel plated brass
Electronic sensor type
Photo-electric sensor transmitter
Sensor design
Cylindrical M8
Electrical connection
Cable
Material
Metal
Cable composition
3 x 0.14 mm²
Wiring technique
3-wire
Detection system
Thru beam
Emission
-
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Setting-up
Without sensitivity adjustment
Current consumption
<= 15 mA
Lens material
PC
Sensing range
> 1...5 m
Delay first up
20 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 CENTIMETER
Package 1 width
6.7 CENTIMETER
Package 1 length
9.5 CENTIMETER
Package 1 weight
0.048 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
24
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.338 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) LED, 4 viewing ports at 90°
- Note : Fixing nut tightening torque : <2N.m
Wiring Schemes
Transmitter
- BN : Brown
- BU : Blue
- VI : Violet

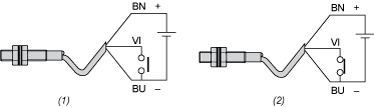

Wiring Schemes
Beam Break Test
- BN : Brown
- BU : Blue
- VI : Violet
- (1) Beam made LED on (steady light)
- (2) Beam broken LED flashing
- BN : Brown
- BU : Blue
- VI : Violet
Detection Curves
Excess Gain Curves (Ambient temperature: ± 25 °C)
- (Y) Gain
- (X) Distance (m)
