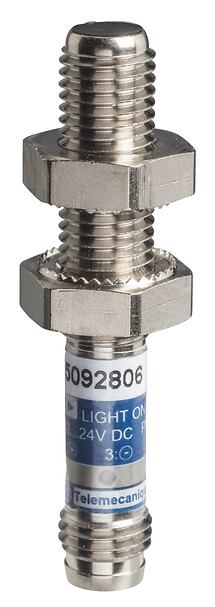

XUAH0214S
Photoelectric sensors XU, XUA, thru beam, Sn 2 m, 12...24 VDC, M8
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUA
Series name
Application assembly
Product specific application
Not applicable
Enclosure material
Nickel plated brass
Electronic sensor type
Photo-electric sensor
Sensor design
Cylindrical M8
Electrical connection
1 male connector M8, 3 pins
Material
Metal
Cable composition
3 x 0.14 mm²
Wiring technique
3-wire
Detection system
Thru beam
Emission
Reception infrared thru beam
Discrete output function
1 NO
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
PNP
Delay response
0.25 MILLISECOND
Setting-up
Without sensitivity adjustment
Current consumption
<= 10 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PC
Add on output
Without
Status LED
1 LED (yellow) for output state
Sensing range
> 0...2 m
Maximum voltage drop
<1 V (closed state)
Delay first up
20 MILLISECOND
Delay recovery
0.25 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.5 CENTIMETER
Package 1 width
4.3 CENTIMETER
Package 1 length
9.6 CENTIMETER
Package 1 weight
0.028 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
24
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
0.847 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
9.6 CENTIMETER
Package 3 width
6.5 CENTIMETER
Package 3 length
4.3 CENTIMETER
Package 3 weight
0.031 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

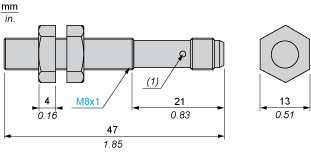

Dimensions
- (1) LED, 4 viewing ports at 90°
- Note : Fixing nut tightening torque : <2N.m
Wiring Schemes
M8 Connector
- 1 : (+)
- 3 : (-)
- 4 : OUT or test
Wiring Schemes
PNP
- 1 : (+)
- 3 : (-)
- 4 : OUT or test

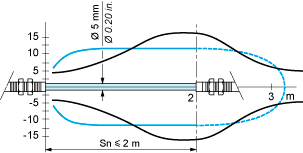

Detection Curves

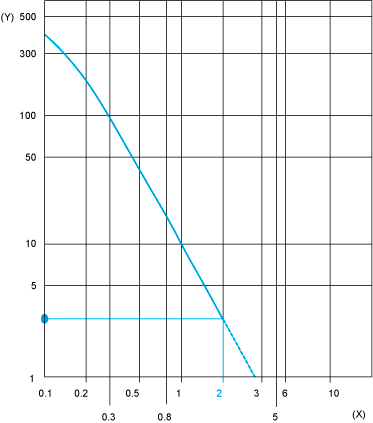

Excess Gain Curves (Ambient temperature: ± 25 °C)
- (Y) Gain
- (X) Distance (m)
Expand all
