XUB2AKSWM12T

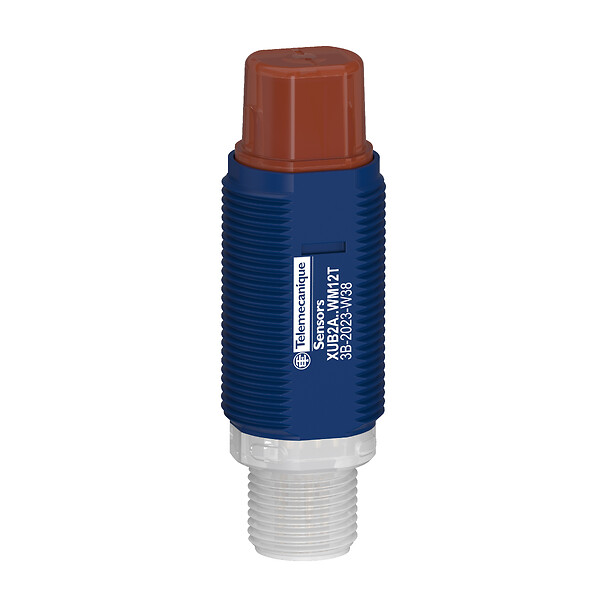

Photoelectric sensors XU, XUB, emitter, 90°, 12...24 VDC, M12
END OF COMMERCIALISATION End of commercialization date : May 01st 2025 End of service date : April 30th 2025
XUB2AKSWM12T is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor transmitter
Sensor name
XUB
Sensor design
Cylindrical M18
Detection system
Thru beam
Material
Plastic
Line of sight type
90° lateral
Supply circuit type
DC
Type of output signal
Discrete
Wiring technique
3-wire
Electrical connection
1 male connector M12, 4 pins
Product specific application
Not applicable
Emission
Infrared thru beam
Enclosure material
PBT
Lens material
PMMA
Output type
Solid state
Status LED
1 LED (green) for supply on
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
500 Hz
Maximum voltage drop
<1.5 V (closed state)
Current consumption
35 mA no-load
Delay first up
15 MILLISECOND
Delay response
1 MILLISECOND
Delay recovery
1 MILLISECOND
Setting-up
Without sensitivity adjustment
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 double insulation conforming to IEC 60529, IP67 double insulation conforming to IEC 60529, IP69K double insulation conforming to DIN 40050
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 CENTIMETER
Package 1 width
6.4 CENTIMETER
Package 1 length
9 CENTIMETER
Package 1 weight
0.036 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
0.967 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
25
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Wiring Schemes
M12 Connector
- 1 : (+)
- 2 : Beam break input (1)
- 3 : (-)
- 4 : OUT/Output
- (1) Beam break input on thru-beam transmitter only
Wiring Schemes
Transmitter
- 1 : (+)
- 2 : Beam break input (1)
- 3 : (-)
- 4 : OUT/Output
- (1) Beam break input on thru-beam transmitter only
