XUFN12301

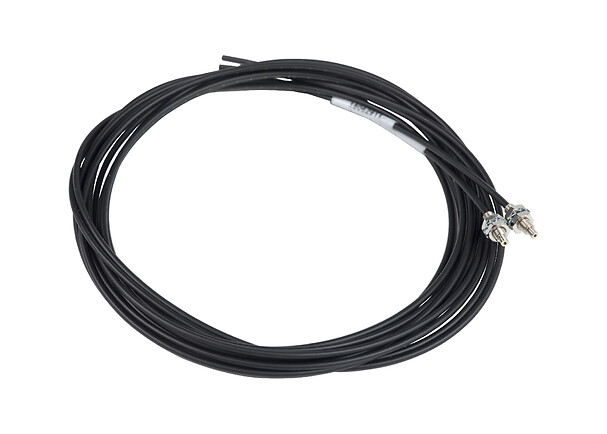

Photoelectric sensors XU, plastic fibre optic for sensor, thru beam, general use, std., 2 m, Sn200mm

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUF
Electronic sensor type
Photo-electric sensor
Sensor design
Fiber design
End fitting type
M2.6 x 0.45, standard thread end fitting
Product destination
XUDA
Detection system
Thru beam
IP degree of protection
IP64 conforming to IEC 60529, IP641 conforming to NF C 20-010
Optic fiber material
PMMA
Sheath material
PE
Optic fiber use
General use
Optic fiber core
1 x Ø 1 mm
Vibration resistance
+/- 1.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, 7 gn (f= 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.6 CENTIMETER
Package 1 width
12.8 CENTIMETER
Package 1 length
13.4 CENTIMETER
Package 1 weight
0.044 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
50
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.509 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
13.5 CENTIMETER
Package 3 width
1.5 CENTIMETER
Package 3 length
13.5 CENTIMETER
Package 3 weight
0.044 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
