XUM2AKCNL2T

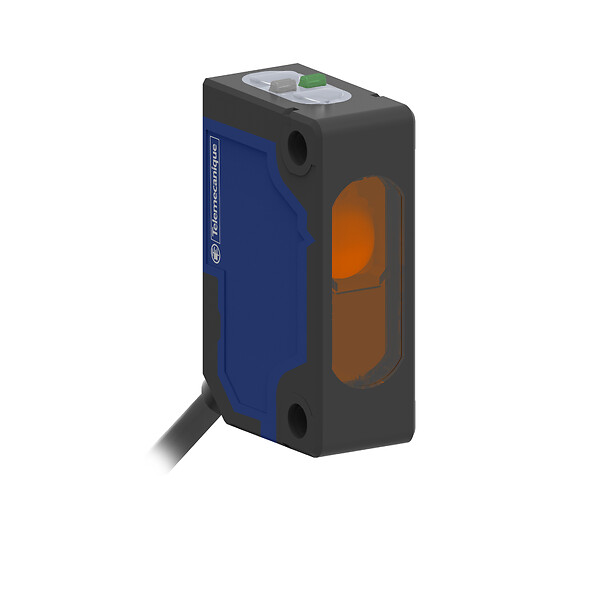

Photoelectric miniature emitter XUM, thru-beam, 12...24 VDC, cable 2 m
END OF COMMERCIALISATION End of commercialization date : January 16th 2023 End of service date : January 16th 2023
XUM2AKCNL2T is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUM
Series name
General purpose single mode
Product specific application
Not applicable
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor transmitter
Sensor design
Miniature
Material
Plastic
Electrical connection
Cable
Wiring technique
2-wire
Detection system
Thru beam
Emission
Red thru beam
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching frequency
1000 Hz
Delay response
0.5 MILLISECOND
Setting-up
Sensitivity adjustment
Current consumption
11 mA no-load
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Status LED
1 LED (orange) for supply on
Sensing range
> 5...15 m
Maximum voltage drop
<3 V (closed state)
Delay first up
100 MILLISECOND
Delay recovery
0.5 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.5 CENTIMETER
Package 1 width
15 CENTIMETER
Package 1 length
15 CENTIMETER
Package 1 weight
56 GRAM
Unit type of package 2
S01
Number of units in package 2
30
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.92 KILOGRAM
Unit type of package 3
PAL
Number of units in package 3
960
Package 3 height
60 CENTIMETER
Package 3 width
80 CENTIMETER
Package 3 length
960 CENTIMETER
Package 3 weight
56.64 KILOGRAM
Expand all
Technical Drawings
Transmitter's Dimensions
- T : Transmission
- (1) Potentiometer
Mounting and Clearance
- (1) Adjustment potentiometer
- (2) Power on LED
Connections and Schemes
Transmitter DC
- BN : Brown
- BU : Blue
Detection Curves
- (Y) Parallel movement (cm)
- (X) Distance (m)
