XUM2APXBM8
Photoelectric sensors XU, miniature, thru beam, Smax=30 m, system, PNP, connector M8
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Thru beam
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Emission
-
Enclosure material
PBT
Lens material
PMMA
Status LED
-
Output type
Solid state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Switching frequency
1000 Hz
Maximum voltage drop
<2 V
Current consumption
20 mA for transmitter, 20 mA for receiver
Delay first up
100 MILLISECOND
Delay response
0.5 MILLISECOND
Delay recovery
0.5 MILLISECOND
Setting-up
Sensitivity by potentiometer
Kit composition
Transmitter + receiver XUM2AKXBM8T + XUM2APXBM8R
Vibration resistance
9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6
Shock resistance
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
120
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
60 CENTIMETER
Package 2 weight
3.012 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions

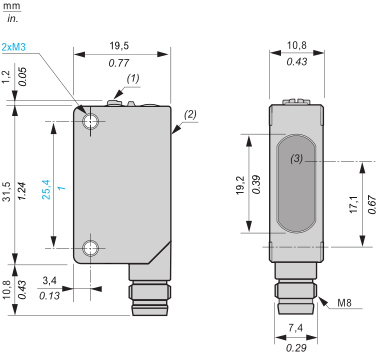

Dimensions
Transmitter

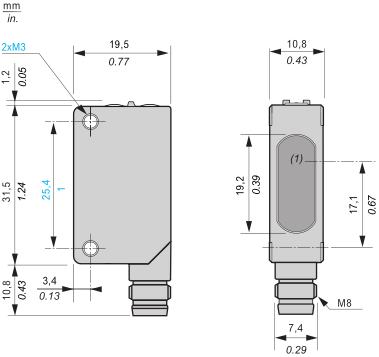

Dimensions
Receiver
Connection and schema
Connection and schema

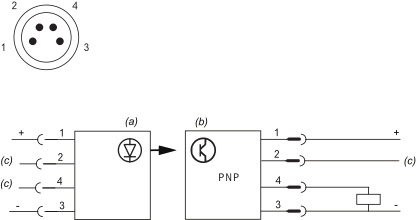

Wiring diagram
