XUM8APXBM8
Photoelectric sensors XU, miniature, background suppression, Smax=0.30 m, PNP, connector M8
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Diffuse with background suppression
Sensing range
0...30 m
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Emission
-
Enclosure material
PBT
Lens material
PMMA
Status LED
-
Output type
Solid state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Switching frequency
1000 Hz
Maximum voltage drop
<2 V (closed state)
Current consumption
30 mA no-load
Delay first up
100 MILLISECOND
Delay response
0.5 MILLISECOND
Delay recovery
0.5 MILLISECOND
Setting-up
Sensitivity by potentiometer
Supply voltage limits
10-30 V DC
Immunity to ambient light
40000 lux sunlight, 10000 lux incandescent light
Relative humidity
35-95 %
Vibration resistance
9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6
Shock resistance
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 length
12 CENTIMETER
Package 1 weight
0.012 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
120
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.975 KILOGRAM
Unit type of package 3
S04
Number of units in package 3
240
Package 3 height
30 CENTIMETER
Package 3 width
40 CENTIMETER
Package 3 length
60 CENTIMETER
Package 3 weight
9.81 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

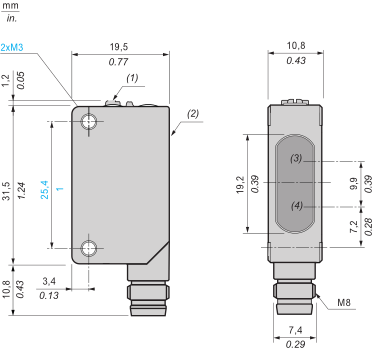

Dimensions
Dimensions
Connection and schema
Connection and schema
Wiring diagram
Detection curves
Detection curves

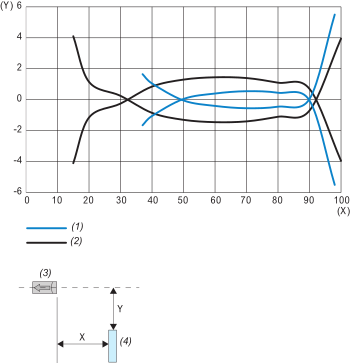

Lateral displacement (preset 100 mm)
Detection curves

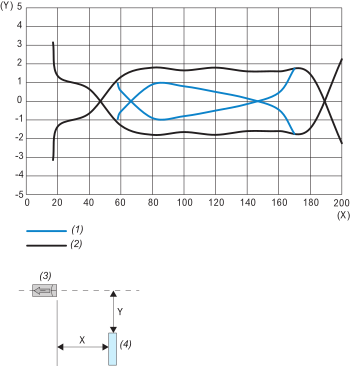

Lateral displacement (preset 200 mm)
Detection curves

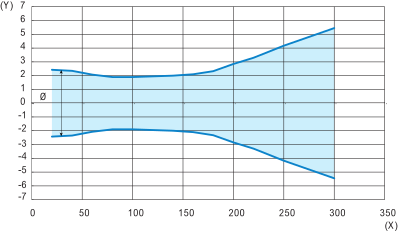

Light beam diameter
Detection curves

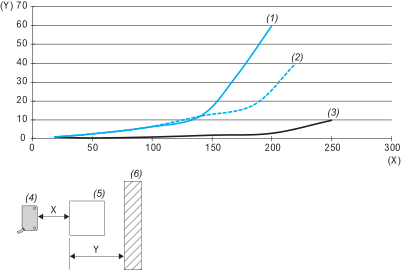

Minimum distance between the object to detect and white background
