Home Products XUSZBSS4

XUSZBSS4

Telemecanique Safety light curtains XUSL, Swivel bracket with end caps, 4 fixing brackets set

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Safety light curtains XUSL
Accessory / separate part category
Mounting and fixing accessories
Accessory / separate part type
Swivel mounting support
Product compatibility
XUSL2E
XUSL4E
Accessory / separate part destination
Safety light curtain type 2
safety light curtain type 4
Kit composition
4 x swivel bracket(s), end cap(s)
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.8 CENTIMETER
Package 1 width
10.4 CENTIMETER
Package 1 length
17 CENTIMETER
Package 1 weight
0.218 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.505 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

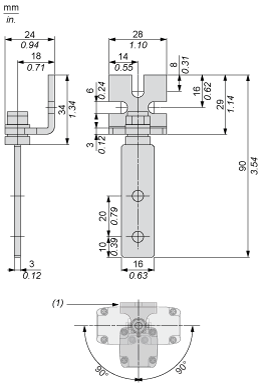

Dimensions

epds
  • (1) Swivel bracket

Mounting and Clearance

epds
  • (1) Insert
  • (2) Pivot
  • (3) Washer
  • (4) Nut
  • (5) Swivel bracket
