9007AP221

Snap switch 9007A, 600 VAC, 15 A, option version

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Snap limit switch
Device short name
9007AO/CO
Body type
Fixed
Mounting mode
Panel mounting
Operator profile
Plunger head
Material
Metal
Body material
Cast zinc
Operator material
Cast zinc
Fixing mode
By the head
Movement of operating head
Linear
Type of operator
Spring return plunger metal bushing mounted
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Electrical connection
1-2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Contact operation
Snap action
Contacts type and composition
NC-NO, switch function: SPDT-DB
Contact form
Form Z
Contacts material
Silver contacts
Positive opening
Without
Terminals description ISO n°1
(1-2)NC
(3-4)NO
NEMA degree of protection
NEMA 1 conforming to Nema type 250
IP degree of protection
IP20 conforming to IEC 60529
Unit type of package 1
PCE
Package 1 height
2.54 CENTIMETER
Number of units in package 1
1
Package 1 width
5.842 CENTIMETER
Package 1 length
6.858 CENTIMETER
Package 1 weight
0.0771 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
50
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.44 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Documents & Downloads

Document name
Date
Size
Catalogue for limit switches, Range 9007 (pdf)

2024-10-31

18760251

Document name
Date
Size
NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

15514

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

19674

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

20577

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

20760

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

21365

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

21659

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

21981

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

22044

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

25474

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

25490

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (stp)

2024-07-18T00:00:00.000Z

275700

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

28907

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

29218

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (pdf)

2024-07-18

30613

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

39634

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal plunger panel mounting, threaded neck with nuts - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

90772

Document name
Date
Size
TESEDEC0000EN_PFAS_Global_Declaration_for_9007AP221 (pdf)

2026-08-19

283066

TESEDEC0000EN_REACh_Declaration_for_9007AP221 (pdf)

2026-04-14

109537

TESEDEC0000EN_RoHS_Declaration_for_9007AP221 (pdf)

2026-04-13

108729

Expand all

Related products & accessories

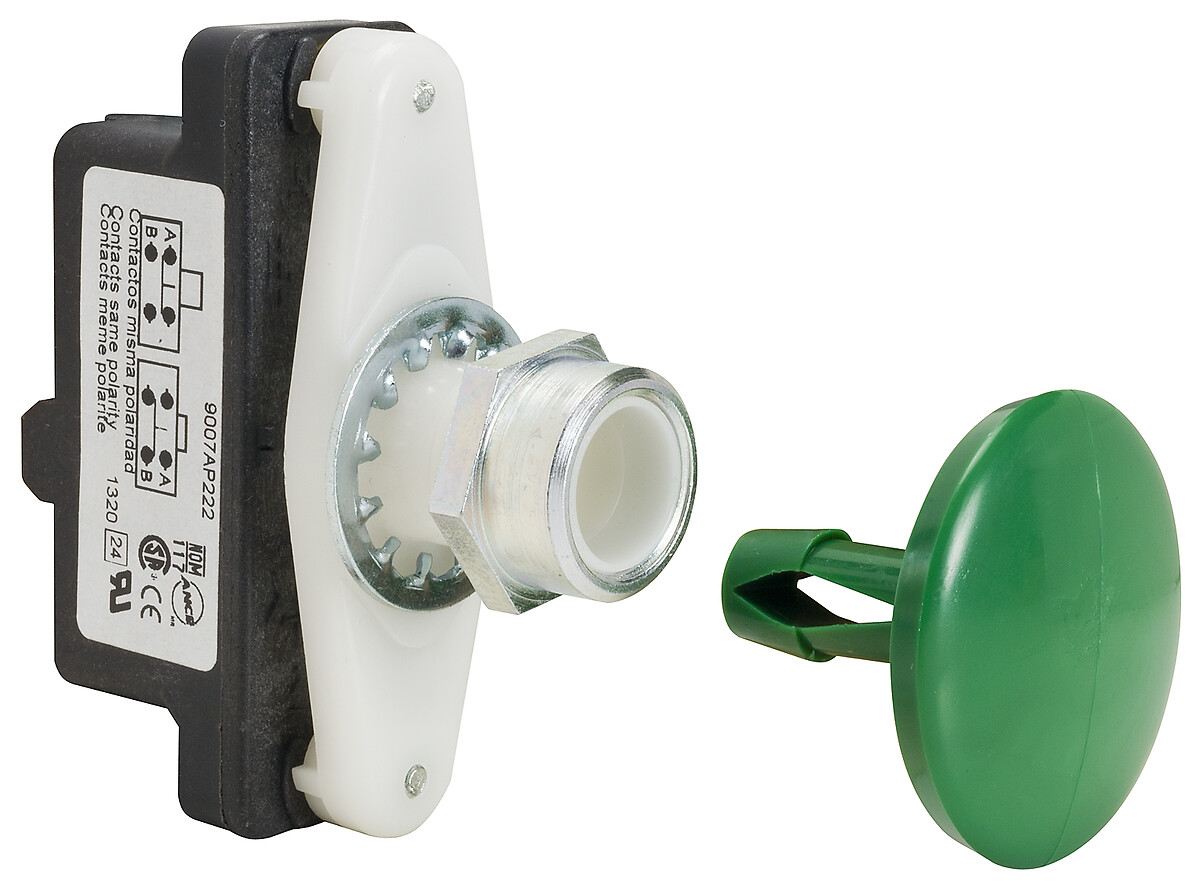

9007AP222

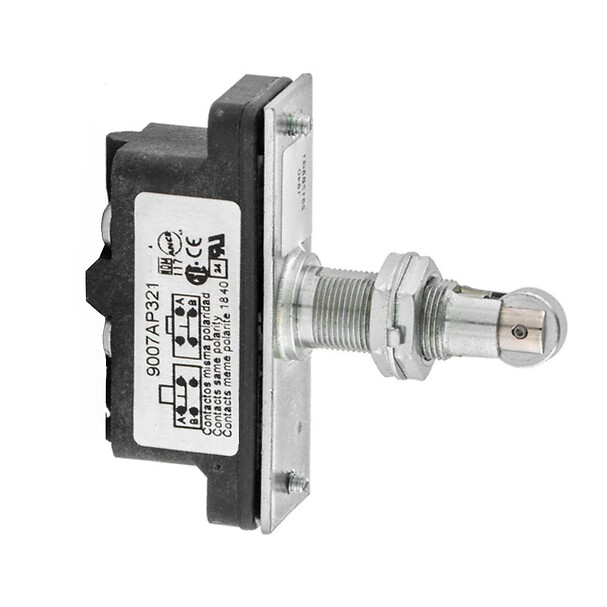

9007AP321
