Home Products 9007AP321

9007AP321

Snap limit switch, 9007, 600 VAC 15amp ap +options

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Snap limit switch
Device short name
9007AO/CO
Body type
Fixed
Mounting mode
Panel mounting non-oil tight
Operator profile
Plunger head
Material
Metal
Body material
Cast zinc
Operator material
Cast zinc
Fixing mode
By the head
Movement of operating head
Linear
Type of operator
Spring return roller plunger steel bushing mounted
Switch actuation
By 30° cam
Type of approach
Traverse approach, 2 directions
Electrical connection
1-2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Contact operation
Snap action
Contacts type and composition
NC-NO, switch function: SPDT-DB
Contact form
Form Z
Contacts material
Silver contacts
Positive opening
Without
Terminals description ISO n°1
(1-2)NC
(3-4)NO
NEMA degree of protection
NEMA 1 conforming to Nema type 250
IP degree of protection
IP20 conforming to IEC 60529
Unit type of package 1
PCE
Package 1 height
12.954 CENTIMETER
Number of units in package 1
1
Package 1 width
24.384 CENTIMETER
Package 1 length
27.94 CENTIMETER
Package 1 weight
45.359 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Documents & Downloads

Document name
Date
Size
Catalogue for limit switches, Range 9007 (pdf)

2024-10-31

18760251

Document name
Date
Size
NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

17638

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

20345

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

20577

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

20760

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

21627

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

21658

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

22168

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

22198

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

26764

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

26770

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

29378

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

29690

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (stp)

2024-07-18T00:00:00.000Z

303442

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (pdf)

2024-07-18

32064

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dwg)

2024-07-18T00:00:00.000Z

41203

NEMA Square D 9007 Limit Switches, 9007 AO/CO Heavy Duty Snap Switches, Metal roller plunger panel mount, threaded neck with nuts, 9007 AO/CO Snap Switch Metal roller plunger panel mounting - 3D CAD (dxf)

2024-07-18T00:00:00.000Z

98144

Document name
Date
Size
TESEDEC0000EN_REACh_Declaration_for_9007AP321 (pdf)

2026-04-14

109534

Document name
Date
Size
TESEDEC0000EN_RoHS_Declaration_for_9007AP321 (pdf)

2026-04-13

108767

Expand all

Related products & accessories

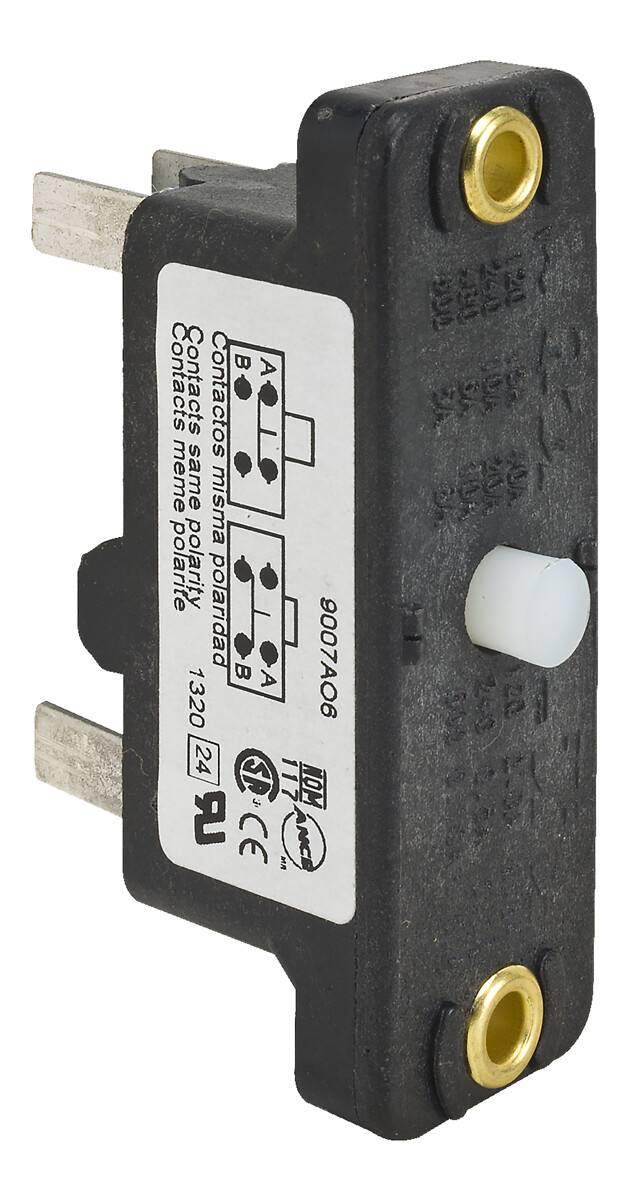

9007AO6
