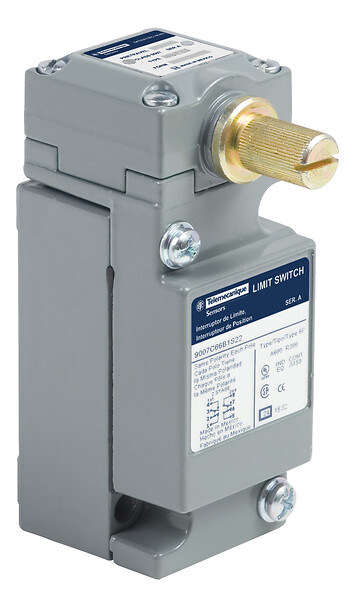

9007C66B1S22
9007, limit switch 600 V 10amp c special +opti
Commercialised
Expand all
Datasheet
Range of product
9007
Series name
Heavy duty
Device short name
C
Provided equipment
Receptacle
Head type
Turret head rotary lever
Type of operator
spring return lever arm (first stage : 10° - second stage : 2.5°) (to be ordered separately, spring return lever arm (standard pre-travel)
Cable entry
NPT conduit entry, cable outer diameter: 0.5-0.5 in
Contacts type and composition
2 NO/2 NC
Switch actuation
CCW
Contact operation
Snap action
two stage
two stage
Body material
Zinc alloy
Contacts material
Silver alloy (Ag/Ni)
Switch function
SPDT-DB
Contact form
Form ZZ
Product certifications
CE
CSA
UL listed
CSA
UL listed
Package 1 height
4.3 CENTIMETER
Package 1 width
7.1 CENTIMETER
Package 1 length
10.7 CENTIMETER
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
576.1 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
