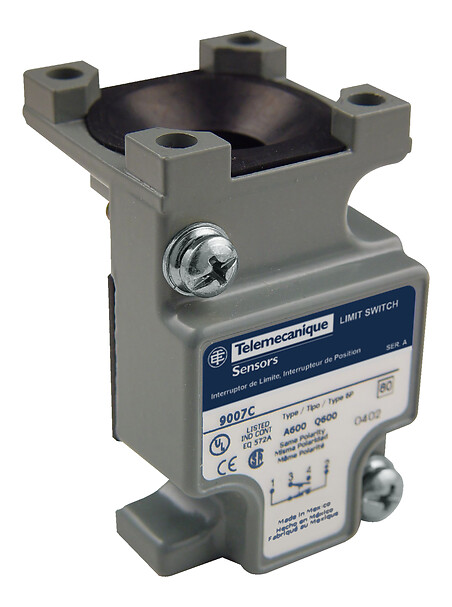

9007CO52

Limit switch plug-in unit 9007C, 600 V, 10 A

arrow

COMMERCIALISED

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch plug-in unit
Device short name
9007C
ETIM classification
ETIM 9 - EC000030 - End switch
Body type
Compact plug-in
Body material
Zinc
Number of poles
1
Local display
Without
Product compatibility
9007C
Indivisible sale quantity
1
Sale per indivisible quantity
1
Mechanical durability
10000000 cycles
Electrical durability
1000000 cycles
Positive opening
Without
Contact form
Form Z
Contacts type and composition
NC-NO
Contacts material
Silver contacts
Terminals description ISO n°1
(1-2)NC
(3-4)NO
Contact operation
Snap action
[Uimp] rated impulse withstand voltage
2.5 kV AC 1 min conforming to CE, 2.2 kV AC 1 min conforming to UL, 2.64 kV AC 1 s conforming to CSA
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to UL 508 for contact block, 600 V conforming to CSA C22.2 No 14
[Ie] rated operational current
1.2 A at 600 V AC, A600 conforming to NEMA rating designation, 1.5 A at 480 V AC, A600 conforming to NEMA rating designation, 3 A at 240 V AC, A600 conforming to NEMA rating designation, 6 A at 120 V AC, A600 conforming to NEMA rating designation, 0.1 A at 600 V DC, Q600 conforming to NEMA rating designation, 0.27 A at 250 V AC, Q600 conforming to NEMA rating designation, 0.55 A at 125 V DC, Q600 conforming to NEMA rating designation
[Ithe] conventional enclosed thermal current
10 A
Electrical shock protection class
Class 0 conforming to IEC 61140
Short-circuit protection
10 A by CC fuse, protection type: non-time delay
Switch function
SPDT-DB
Function available
Not applicable
Width
1.55 in
Depth
1.79 in
Product weight
1.25 livre
Environmental characteristic
Standard environment
IP degree of protection
IP67 conforming to IEC 60529
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
Ambient air temperature for operation
-29…85 °C
Ambient air temperature for storage
-29…85 °C
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Protective treatment
Epoxy powder coat
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
MX (Mexico)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916092293
Package 1 height
4.3 cm
Package 1 width
6.9 cm
Package 1 length
10.9 cm
Package 1 weight
0.18 kg
New Package 2 GTIN 14
13666916092290
New Package 3 GTIN 14
23666916092297
