9007CR53J

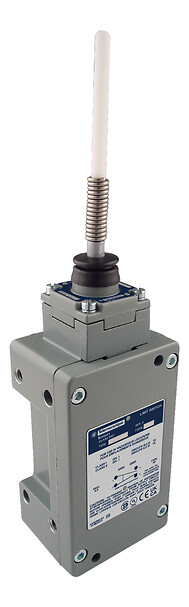

Limit switch 9007CR, 1NC+1NO, 10 A, option version

arrow

COMMERCIALISED

Expand all

Datasheet

Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch
Device short name
9007CR
Product specific application
Hazardous location box
ETIM classification
ETIM 9 - EC000030 - End switch
Body type
Fixed
Head type
Multi-directional head
Material
Metal
Body material
Aluminium
Head material
Zinc
Fixing mode
By the body
Movement of operating head
Multi-directional
Type of operator
Acetal resin spring return wobble stick (-)
Switch actuation
By any moving part
Type of approach
Multi-directional approach, multi-directional approach
Number of poles
1
Level or class
Class II Division 1 Groups E/F/G
Class I Division 1 Groups B/C/D
Indivisible sale quantity
1
Sale per indivisible quantity
1
Mechanical durability
10000000 cycles
Minimum torque for tripping
3 lbf.in
Tripping angle
10 °
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Electrical durability
1000000 cycles
Electrical connection
Screw-clamp terminals (AWG 22...AWG 12), 1-2
Positive opening
Without
Contact form
Form Z
Contacts type and composition
NC-NO
Contacts material
Silver contacts
Terminals description ISO n°1
(1-2)NC
(3-4)NO
Contact operation
Snap action
[Uimp] rated impulse withstand voltage
2.5 kV AC 1 min conforming to CE, 2.2 kV AC 1 min conforming to UL, 2.64 kV AC 1 s conforming to CSA
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to UL 508 for contact block, 600 V (pollution degree 3) conforming to CSA C22.2 No 14 for contact block
[Ie] rated operational current
1.2 A at 600 V AC, A600 conforming to NEMA, 1.5 A at 480 V AC, A600 conforming to NEMA, 3 A at 240 V AC, A600 conforming to NEMA, 6 A at 120 V AC, A600 conforming to NEMA, 0.1 A at 600 V DC, Q600 conforming to NEMA, 0.27 A at 250 V AC, Q600 conforming to NEMA, 0.55 A at 125 V DC, Q600 conforming to NEMA
[Ithe] conventional enclosed thermal current
10 A
Electrical shock protection class
Class 0 conforming to IEC 61140
Short-circuit protection
10 A by CC fuse, protection type: non-time delay
Local signalling
without
Switch function
SPDT-DB
Function available
Not applicable
Width
2.72 in
Depth
2.08 in
Product weight
2.5 livre
Environmental characteristic
Standard environment
IP degree of protection
IP67 conforming to IEC 60529
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
Ambient air temperature for operation
-29…85 °C
Ambient air temperature for storage
-29…85 °C
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Protective treatment
Epoxy powder coat
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
MX (Mexico)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916098646
Package 1 height
16.516 cm
Package 1 width
6.502 cm
Package 1 length
41.951 cm
Package 1 weight
1.02 kg
New Package 2 GTIN 14
13666916098643
New Package 3 GTIN 14
23666916098640
