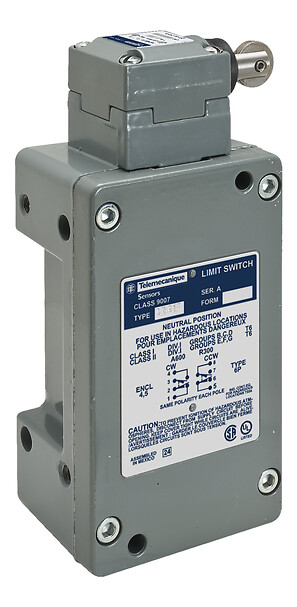

Mechanical durability
10000000 cycles
Minimum torque for tripping
4 lbf.in
Maximum actuation speed
90 ft/min with 45° cam angle, levers only, 130 ft/min with 30° cam angle, levers only
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Repeat accuracy
+/- 0.001 in linear travel of cam
Electrical durability
1000000 cycles
Electrical connection
Screw-clamp terminals (AWG 22...AWG 12), 1-2
Contacts type and composition
NC-NO
Contacts material
Silver contacts
Terminals description ISO n°1
(1-2)NC
(3-4)NO
Contact operation
Snap action
[Uimp] rated impulse withstand voltage
2.5 kV AC 1 min conforming to CE, 2.2 kV AC 1 min conforming to UL, 2.64 kV AC 1 s conforming to CSA
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to UL 508 for contact block, 600 V (pollution degree 3) conforming to CSA C22.2 No 14 for contact block
[Ie] rated operational current
1.2 A at 600 V AC, A600 conforming to NEMA, 1.5 A at 480 V AC, A600 conforming to NEMA, 3 A at 240 V AC, A600 conforming to NEMA, 6 A at 120 V AC, A600 conforming to NEMA, 0.1 A at 600 V DC, Q600 conforming to NEMA, 0.27 A at 250 V AC, Q600 conforming to NEMA, 0.55 A at 125 V DC, Q600 conforming to NEMA
[Ithe] conventional enclosed thermal current
10 A
Electrical shock protection class
Class 0 conforming to IEC 61140
Short-circuit protection
10 A by CC fuse, protection type: non-time delay
Function available
Not applicable
