9007CR61E

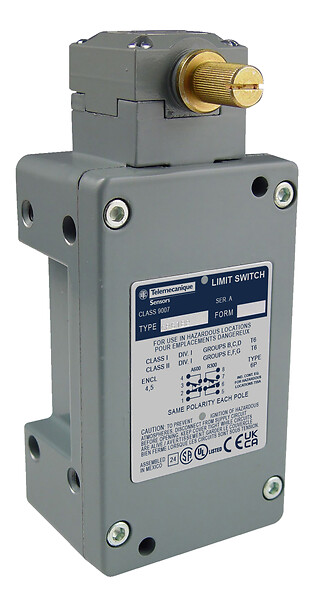

Limit switch, 9007, 9007CR 2 NO/NC, top push rod plunger
COMMERCIALISED
Expand all
Datasheet
Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch
Product specific application
Hazardous location box
Device short name
9007CR
Body type
Fixed
Head type
Plunger head
Material
Metal
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Stainless steel spring return plunger (-)
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Electrical connection
Screw-clamp terminals (AWG 22...AWG 12), 1-2
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts type and composition
2(NC-NO)
Contact operation
Snap action
Positive opening
Without
Level or class
Class II Division 1 Groups E/F/G
Class I Division 1 Groups B/C/D
Class I Division 1 Groups B/C/D
Body material
Aluminium
Head material
Zinc
Function available
Not applicable
Switch function
DPDT-DB
Contact form
Form ZZ
Contacts material
Silver contacts
Terminals description ISO n°1
(1-2)NC
(3-4)NO
(5-6)NC
(7-8)NO
(3-4)NO
(5-6)NC
(7-8)NO
Repeat accuracy
+/- 0.001 in linear travel of cam
Local signalling
without
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Environmental characteristic
Standard environment
Protective treatment
Epoxy powder coat
Package 1 height
6.452 CENTIMETER
Package 1 width
2.54 CENTIMETER
Unit type of package 1
PCE
Package 1 length
16.387 CENTIMETER
Number of units in package 1
1
Package 1 weight
1.134 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
