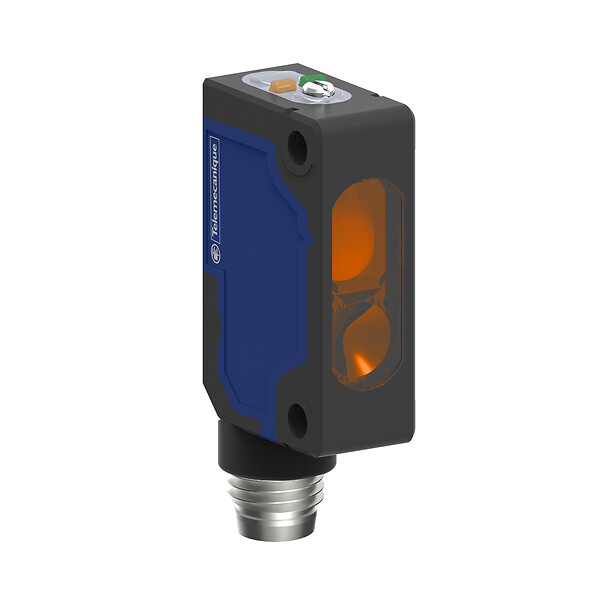

XUM8APCNM8
Photoelectric sensors XU, XUM, BGS, Sn 0.3 m, 12...24 VDC, M8
END OF COMMERCIALISATION End of commercialization date : December 31st 2024 End of service date : December 31st 2024
XUM8APCNM8 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Diffuse with background suppression
Sensing range
> 0.3...1 m
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
[Sn] nominal sensing distance
0.3-0.3 m diffuse with background suppression
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Product specific application
Not applicable
Emission
Red diffuse with background suppression
Enclosure material
PBT
Lens material
PC
Output type
Solid state
Status LED
1 LED (yellow) for output state, 1 LED (red) for instability
[Us] rated supply voltage
12...24 V DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
500 Hz
Maximum voltage drop
<1.5 V (closed state)
Current consumption
35 mA no-load
Delay first up
30 MILLISECOND
Delay response
1 MILLISECOND
Delay recovery
1 MILLISECOND
Setting-up
Without sensitivity adjustment
Supply voltage limits
10-30 V DC
Immunity to ambient light
3000 lux natural light, 3000 lux incandescent light
Ambient air temperature for operation
-25-55 °C
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 double insulation conforming to IEC 60529, IP65 double insulation conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.5 CENTIMETER
Package 1 width
16 CENTIMETER
Package 1 length
20 CENTIMETER
Package 1 weight
0.014 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
48
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
0.946 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
1536
Package 3 height
75 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
56 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- R : Reception
- T : Transmission
Mounting
Wiring Schemes
M8 Connector
- 1 : (+)
- 2 : Mode/Input
- 3 : (-)
- 4 : Output
Wiring Schemes
PNP Output
- 1 : (+)
- 2 : Mode/Input
- 3 : (-)
- 4 : Output
- BU : Blue
- BN : Brown
- BK : Black
- PK : Pink
- Note : This scheme is represented in "background suppression" mode, cabling of pink (PK) wire to 0 V
Detection Curves
Variation of Usable Sensing Distance
Variation of Usable Sensing Distance
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
